Heavy-Duty UHMWPE
Synthetic Railway
Sleepers & Outrigger Pads
Next-generation engineering plastic sleepers replacing steel & wood with extreme load capacity, zero maintenance, and zero water absorption. Available in 100% Virgin & Recycled Eco grades.
UHMWPE Plastic Railway Sleepers -- Export Grade
1920×600 px -- Hero Product Shot
Innovative Polymer Railway Sleepers:
Virgin & Recycled
Material Options
Our UHMWPE synthetic railway sleepers overcome the rust of steel, the rot of timber, and the cracking of concrete -- with molecular weights from 2 to 7 million g/mol.
Our UHMWPE (Ultra High Molecular Weight Polyethylene) railway sleepers represent a revolutionary "plastic-replacing-steel" engineered material solution. These synthetic plastic sleepers and composite railway ties deliver exceptional performance in heavy-haul railway applications, crane outrigger pad support, and industrial ground protection. To meet diverse budget constraints and load-bearing requirements, we offer two distinct material grade solutions for our UHMWPE sleeper outrigger pads and track sleepers:

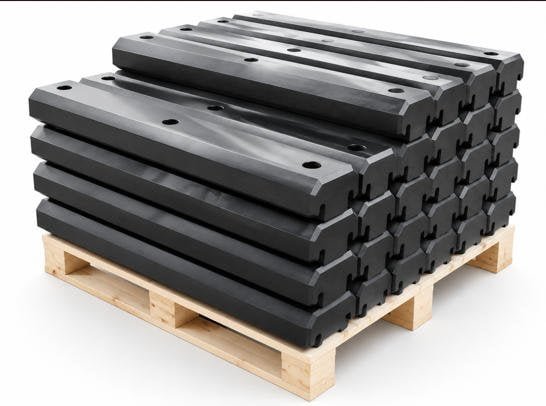

100% Virgin UHMWPE
Manufactured from pure raw polymers with no recycled content. Offers maximum tensile strength, superior impact resistance, and extended service life. Ideal for critical infrastructure requiring the highest material integrity.
- 40+ year service life in heavy-haul track systems
- Maximum tensile strength & impact resistance
- Ideal for crane outriggers & critical infrastructure
- Consistent molecular weight 2-7 million g/mol

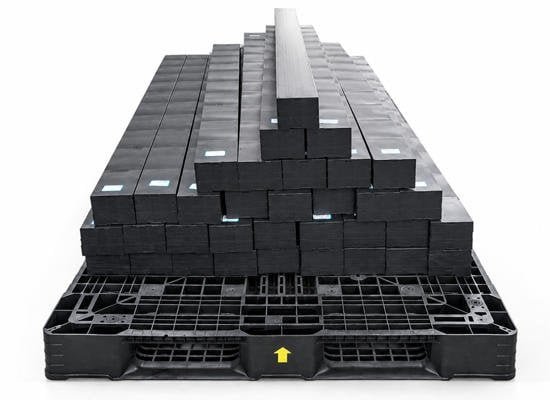

Recycled / Eco UHMWPE
Reprocessed engineering polymer delivering high structural performance at approximately 50% lower material cost compared to virgin grades. An excellent eco-friendly option for standard applications without compromising core mechanical properties.
- ~50% lower cost vs. virgin grade material
- Eco-certified reprocessed engineering polymer
- Suitable for standard freight lines & temporary tracks
- High structural performance for utility support pads
Technical Data & Performance Metrics
(TDS & Testing Standard)

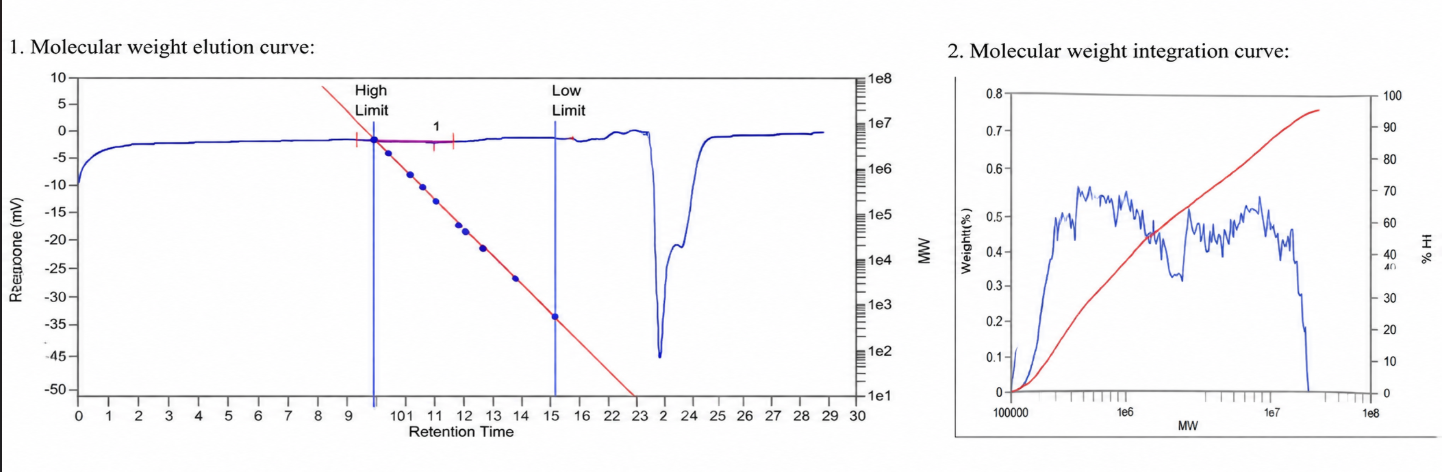

Tested by certified international laboratories (ICAS / ISO / ASTM). Our UHMWPE plastic sleepers guarantee top-tier mechanical integrity for high-impact railway applications.
Download Technical Datasheet (TDS)| Technical Property | Test Method | Typical Reference Value | Performance Benefit |
|---|---|---|---|
| Density 密度 | ISO 1183-1 | 0.92 - 0.98 g/cm³ | 1/7 weight of steel; easy transport & manual handling. |
| Compressive Strength 抗压强度 | ISO 604 | ≥ 30 MPa | High WLL (Working Load Limit) support up to 30+ Tons. |
| Tensile Strength 抗拉强度 | ISO 527-2 | ≥ 24 MPa | Resists dynamic bending & shearing under heavy axle loads. |
| Notched Impact Strength 冲击强度 | ISO 179-1 | ≥ 100 kJ/m² | Outstanding toughness; zero fracture under extreme shock. |
| Water Absorption 吸水率 | ASTM D 570 | ≤ 0.01 % | Virtually zero moisture absorption; impervious to rot & fungi. |
| Service Temperature 耐受温度 | Internal Method | −260°C to +80°C | Perfect for tropical heat (Indonesia/Malaysia) or arctic freeze. |
| Hardness Shore D 邵氏硬度 | ISO 868 | 60 - 70 Shore D | Wear-resistant surface protecting steel rails and wheelsets. |
| Friction Coefficient 动摩擦系数 | ASTM D 1894 | ≤ 0.20 | Self-lubricating, non-adherent surface preventing mud buildup. |
Where UHMWPE Plastic Sleepers
& Outrigger Pads Are Used

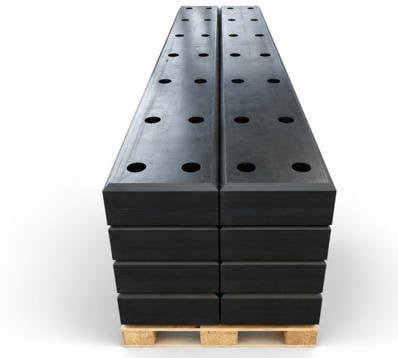

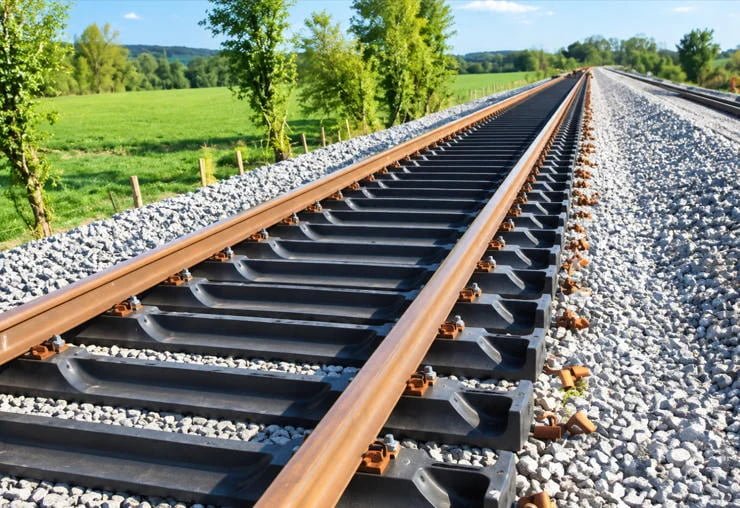

Mainline & Industrial Railway Track Sleepers
Direct replacement for timber and concrete sleepers on heavy-haul mainline tracks, industrial sidings, and port railway systems. Zero rot, zero maintenance.

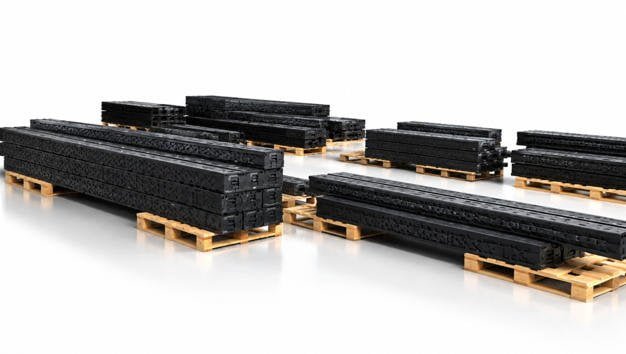

Crane & Heavy Equipment Sleeper Outrigger Support Pads
UHMWPE crane outrigger pads rated to 30+ ton WLL. Protect ground surfaces while distributing outrigger loads safely. Custom CNC sizes available.

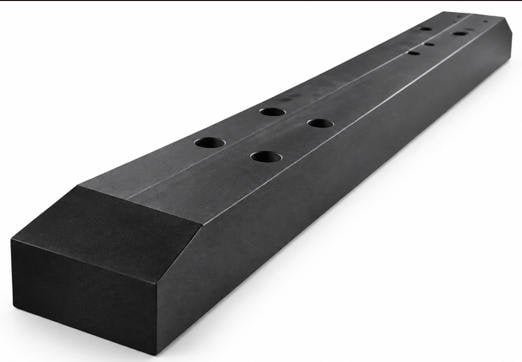

Turnout & Railway Bridge Transition Sleepers
Precision-machined UHMWPE composite railway ties for switch assemblies, crossings, and bridge approach transition zones requiring dimensional accuracy.

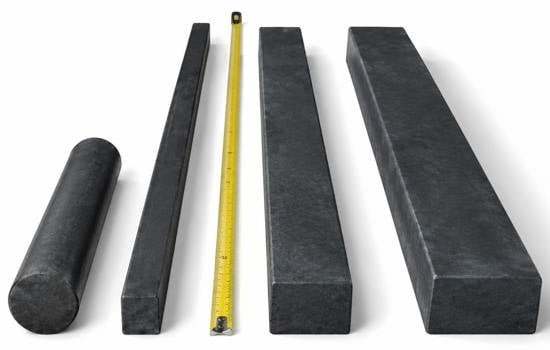

Marine, Mining & Port Ground Protection Blocks
Corrosion-proof, zero water absorption UHMWPE blocks for marine docks, open-pit mining ground mats, and port heavy equipment support.
Request a Fast Quote for
Your Custom UHMWPE Sleepers
Send us your required dimensions, material preference (Virgin or Recycled), and target quantity for a direct quote from our engineering team. We respond within 24 business hours.

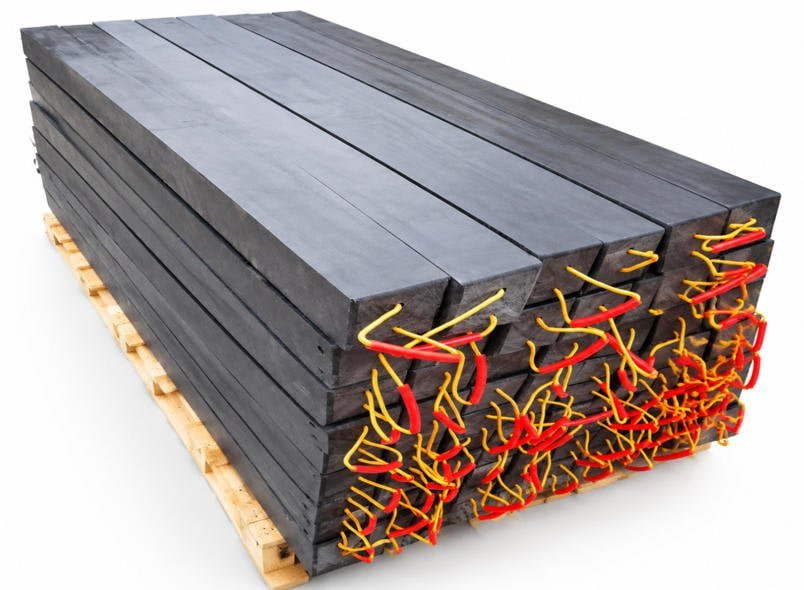

- Custom sizes CNC machined to your exact drawings -- any length, width & thickness
- Virgin or Recycled UHMWPE grade selection based on your load & budget requirements

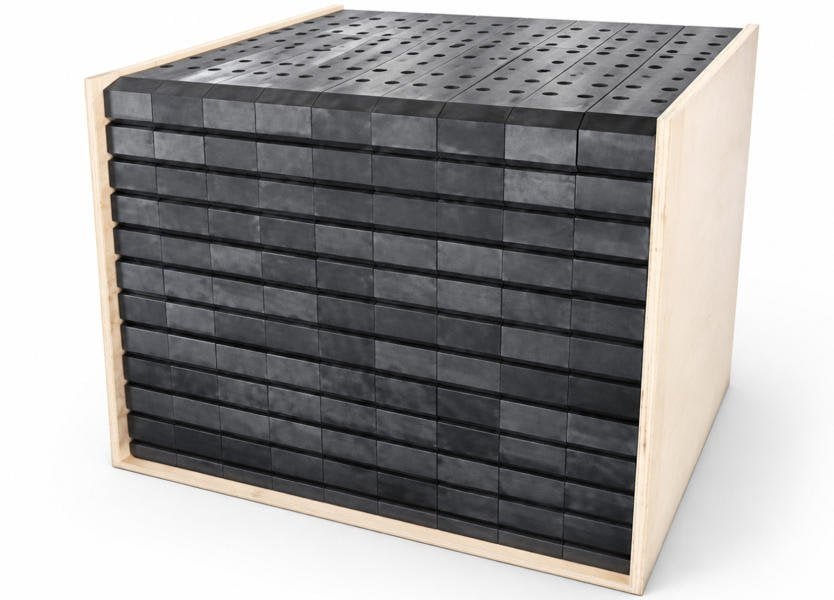

- Export packaging & shipping to Southeast Asia, Africa, Middle East, and beyond
- ISO / ASTM certified material with third-party lab test reports available
