Precision Cast Railway
Bogie Bolster & Side Frame
Solutions
Premium Metal-Cast Components Engineered for Heavy-Haul Freight Cars & Locomotives
Advanced Casting Engineering &
US/China Patented Core-Making Technology
Railway bogie bolster · bogie side frame casting · steel casting for rail cars · AAR Grade C steel bolster

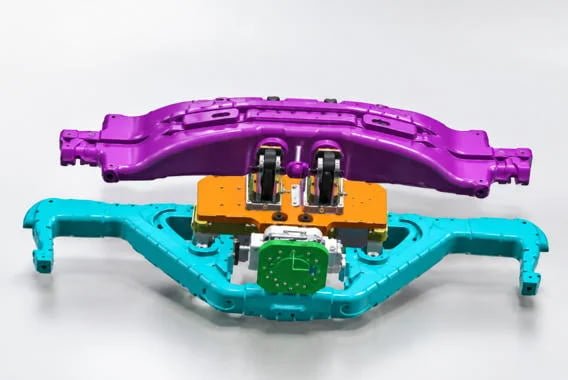

Our engineering division brings together over 80 senior technical experts, metallurgists, and rail freight casting specialists. Driven by continuous innovation, we developed the patented One-Piece Core-Making Technology for Bolsters and Side Frames -- recognized with both US and Chinese Invention Patents -- revolutionizing dimensional accuracy and structural integrity in heavy-duty bogie castings.

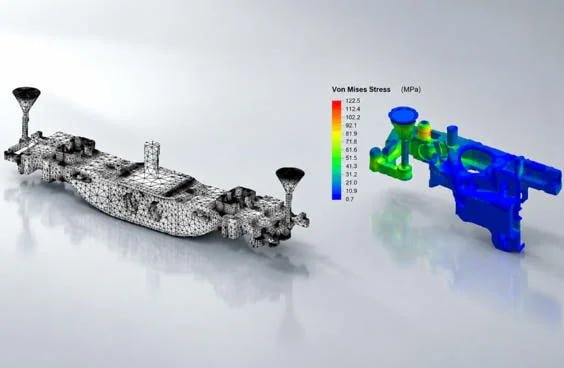

Utilizing advanced 3D modeling, Cooling Solidification Simulation (CAE), and integrated PDM/CAM systems, our engineering team optimizes metal flow and thermal stress distribution before casting. This eliminates internal porosity and micro-defects, delivering superior fatigue life and high impact resistance for modern freight cars.
- US & Chinese Invention Patents -- One-Piece Core-Making Technology
- CAE Cooling Solidification Simulation for zero-porosity castings
- Integrated PDM/CAM systems for precision process control
- 80+ senior metallurgists and rail casting specialists on staff
Solidification Simulation (CAE)
US & CN Invention Patents
80+
Senior Engineers
2
Invention Patents
4
Global Standards
ISO
Certified
State-of-the-Art Foundry Equipment
& Automated Production Lines
Heavy haul truck bolster · cast steel side frame supplier · bogie steel casting foundry · automatic molding line for railway castings
To ensure high repeatability and flawless dimensional tolerance, our foundry is equipped with fully automated casting, core-setting, and heat-treatment equipment across every stage of production:
Automated Molding & Core-Making
Ester-cured water-glass sand molding lines paired with automated sand-box closing machines and Coresetting Robots to guarantee micron-level fitting precision.
Continuous Heat Treatment
Suspended continuous heat-treatment furnaces designed for precise thermal cycles, optimizing the tensile strength and toughness of AAR Grade B+ and Grade C steel.
Robotic Welding & Shot-Peening
Robotic welding systems for side frame supporting seats and automated shot-peening units to eliminate surface stress concentrations.
Precision Inspection (CMM & NDT)
Large-scale Integral Three-Coordinate Measuring Machines (CMM) and magnetic particle defect inspection to enforce zero-defect quality control.

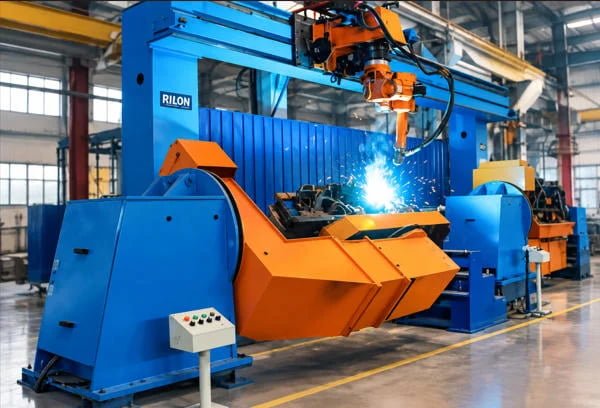

Coresetting Robot

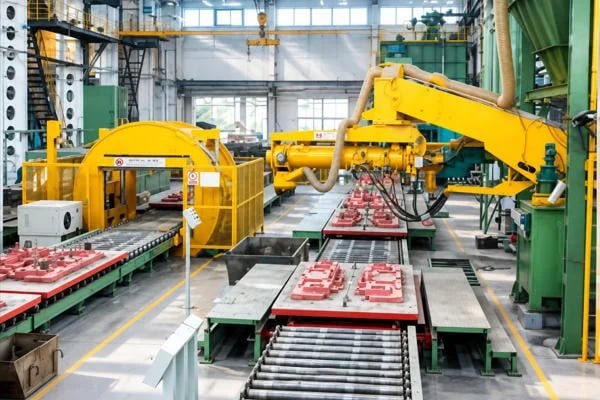

Water-Glass Sand Molding Line

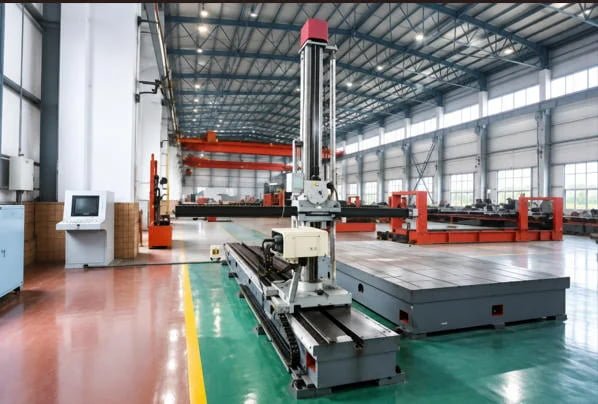

Integral CMM Measuring Machine
Continuous Heat-Treatment Line

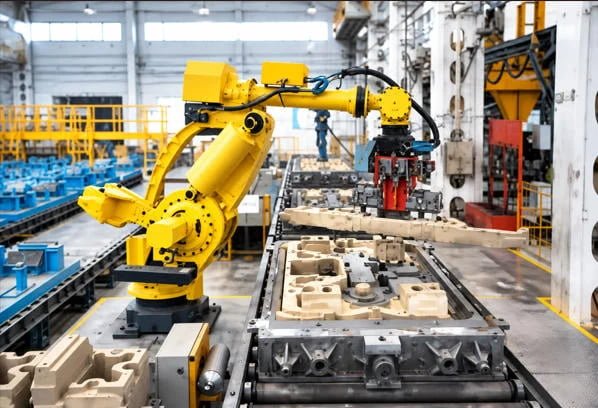

Robotic Welding System

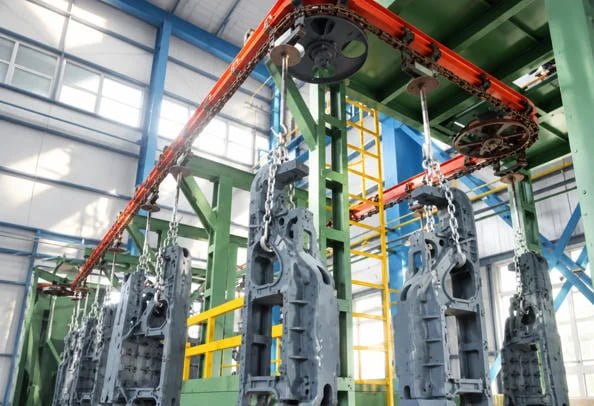

Shot Blast Peening Machine
Freight Car Bolsters, Side Frames
& Cast Steel Accessories
Type K6 bolster · Type K6 side frame · Russian Type 18-100 side frame · meter gauge bolster · AAR Grade B+ steel castings
Our bolsters and side frames are produced in strict compliance with international railway standards including AAR, UIC, GOST, RAIL, and GB. We offer custom design and OEM production according to client drawings and axle load requirements.

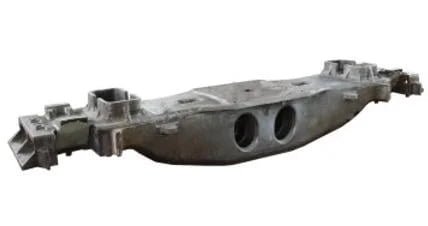

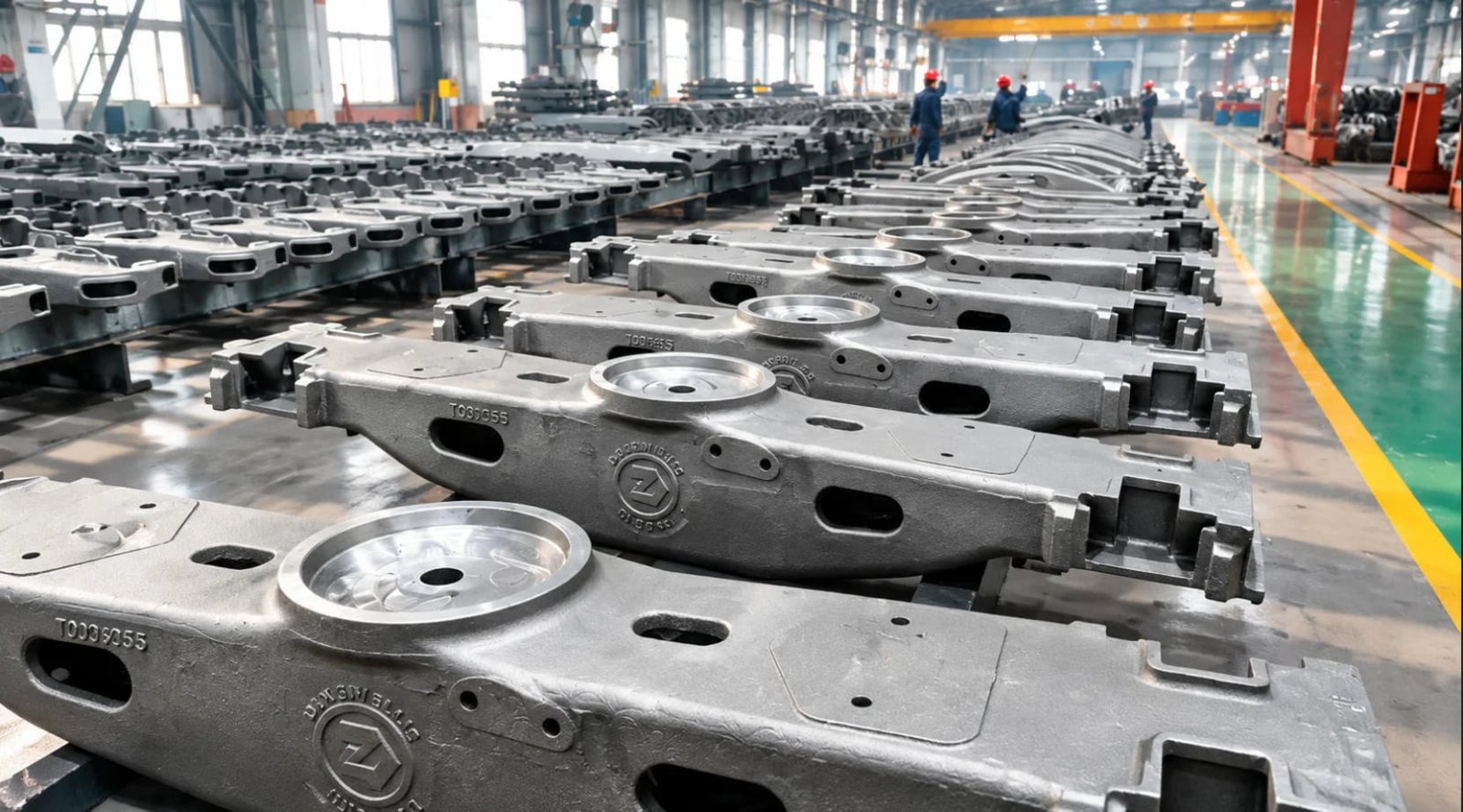

Type K6 Bolster
AAR standard bogie bolster for North American heavy-haul freight car trucks.

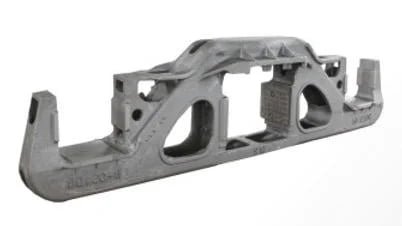

Type K6 Side Frame
Structural bogie side frame for AAR compliant freight wagon trucks.

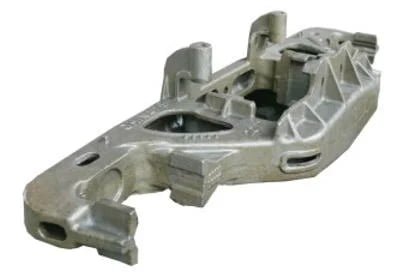

Type 18-100 Side Frame
GOST / Russian standard side frame engineered for extreme low-temperature environments.

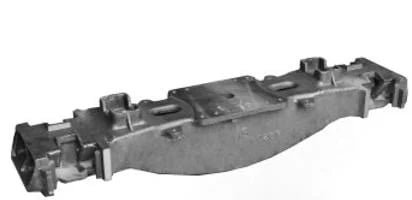

Meter Gauge Bolster
Custom bolsters for meter gauge and narrow gauge systems per client drawings.

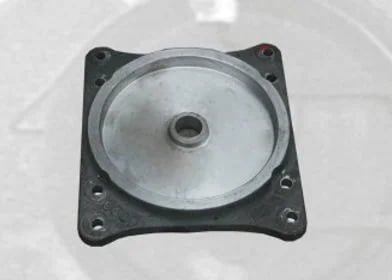

Lower Center Plate
Bogie-to-carbody connection castings for wagons and passenger coaches.

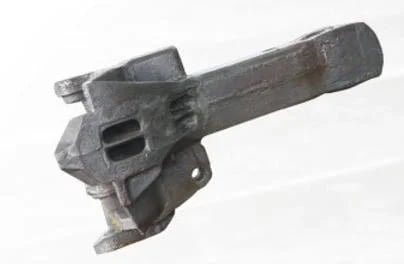

AAR Coupler
Cast steel coupling devices for freight wagons built to AAR standards.

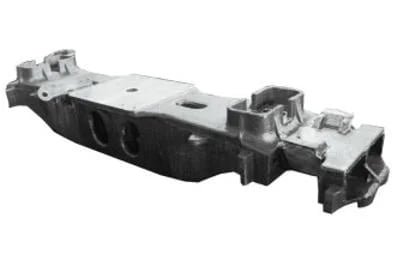

Type K2 Assembly
Type K2 bolster and side frame assembly to AAR / North American standard.
Custom OEM Parts
Don't see your specification? We produce to client drawings, samples, or custom axle load requirements.
Available Steel Grades & Material Specifications
| Standard | Grade | Material Code | Application |
|---|---|---|---|
| GB | ZG230-450 | ZG230-450 / ZG230-425HB | Standard duty bogie components |
| AAR | Grade B+ | ZG25MnVW41 / ZG25VmCrHD | Heavy-haul freight trucks |
| AAR | Grade C | ZG25MnCrNiMo | High-performance / extreme load |
Zero-Defect Quality Commitment
for Heavy-Haul Safety
Every piece of railway casting undergoes rigorous quality verification before shipment. Our multi-stage inspection protocol ensures structural integrity and dimensional accuracy at every critical checkpoint.
Chemical Composition Analysis
Real-time direct-reading spectrometer analysis during furnace melting to verify alloy composition meets specification.
Mechanical & Fatigue Testing
Tensile strength, low-temperature impact, and dynamic fatigue testing for every casting batch.
Non-Destructive Testing (NDT)
Ultrasonic, X-ray, and magnetic particle inspection ensuring internal structural soundness with zero internal defects.
CMM Dimensional Inspection
Large-scale Integral Three-Coordinate Measuring Machines enforce micron-level dimensional tolerance on all critical surfaces.
Compliance Standards
Global Certifications
Partner with a World-Class
Railway Casting Specialist
Looking for reliable bogie bolsters, side frames, or custom rail freight castings? Contact our engineering team for technical evaluations and competitive RFQs.
- AAR, UIC, GOST, GB and custom standard compliance
- OEM production from client drawings, samples, or specifications
- Long-term supply relationships for ongoing replacement needs
- Serving operators, MRO workshops, and distributors worldwide
Request a Technical Quote
We respond to most enquiries within 24 business hours.
