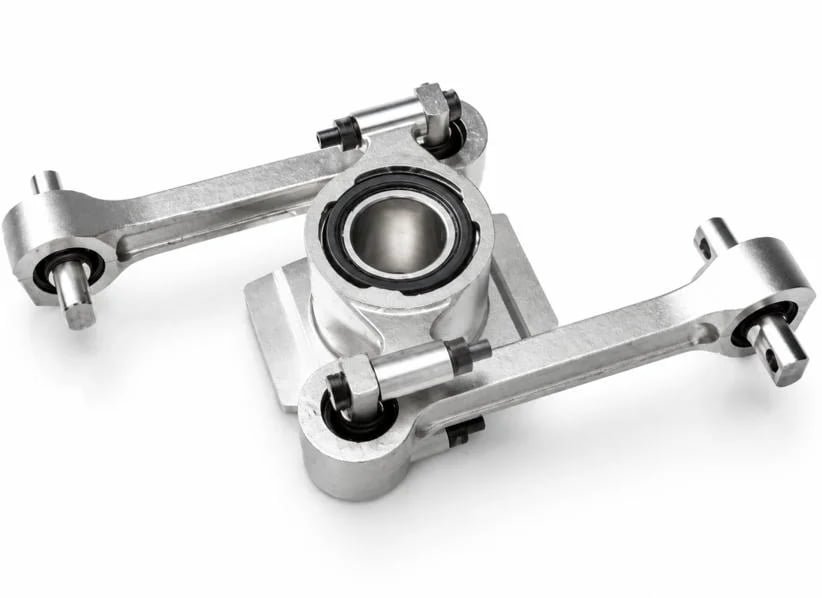

Railway Traction Rod Assembly
Bogie Traction Rods & Linkage Assemblies
Heavy-Duty Force Transmission Components for Rail Transit Rolling Stock
Center traction rods, steering rods, gearbox boom compositions and Watt's linkage rods with pressed-in elastic bushes. Supplied as replacement and maintenance parts, or sourced to your drawing.
- Product families
- 4
- Showcase items
- 25
- Custom parts
- To drawing
Category Overview
The Mechanical Link Between Bogie and Vehicle Body
Railway traction rod assemblies serve as the vital mechanical link transmitting braking and traction forces between the bogie and the vehicle body. We source and supply a wide array of high-strength bogie traction rods, center traction rods, steering rods, and gearbox boom compositions fitted with pre-compressed elastic rubber bushes, and arrange non-standard production to your drawings when a catalogue part does not fit.
Designed to accommodate multi-axis bogie movements while maintaining longitudinal rigidity, traction link compositions with elastic bushes help isolate impact loads and operational noise. Typical construction uses seamless precision steel tubing and drop-forged rod ends, specified per drawing for the long service-interval demands of passenger cars and locomotives.
-
Traction Force Transfer
Carries longitudinal traction force from the bogie to the carbody.
-
Braking Force Path
Returns braking force through the same rod and bush interface.
-
Movement and Noise Isolation
Elastic bushes allow multi-axis movement and help isolate impact loads and noise.
Product Showcase
Traction Rod & Link Assembly Range: 25 Representative Products
Center traction rods, steering rods, gearbox boom compositions and Watt's linkage rods. Send your drawing or part number for the exact match.
Center Traction Rod Compositions
Longitudinal rods that carry traction and braking force between the bogie and the vehicle body, supplied with pre-compressed elastic rubber bushes.
-
No. 01
Center Traction Rods
Centre Traction Rod Assembly, Double Elastic Bush
Tubular rod body with a pre-compressed elastic bush pressed into each end for longitudinal force transfer.
- Elastic bush
- Bogie
-
No. 02
Center Traction Rods
Centre Traction Rod, Spherical Joint End
Rod composition with spherical joint ends to accommodate multi-axis bogie movement.
- Spherical joint
- Bogie
-
No. 03
Center Traction Rods
Centre Traction Rod, Adjustable Length
Length-adjustable rod composition for matching installation centre distance on replacement jobs.
- Adjustable
- Replacement
-
No. 04
Center Traction Rods
Low-Mounted Traction Rod Assembly
Low-position traction link for bogies where the rod connects near the frame and carbody underside.
- Low-mounted
- Passenger car
-
No. 05
Center Traction Rods
Bogie Traction Rod, Locomotive Type
Heavy-duty bogie traction rod composition for locomotive traction and braking force paths.
- Locomotive
- Heavy-duty
-
No. 06
Center Traction Rods
Bogie Traction Rod, Passenger Car Type
Traction rod assembly for passenger coach and rail transit bogies, with elastic end bushes.
- Passenger car
- Rail transit
-
No. 07
Center Traction Rods
Elastic Rod Assembly Bush Set
Replacement pre-compressed elastic bushes and press-fit components for existing traction rod bodies.
- Elastic rod
- Spare parts
-
No. 08
Center Traction Rods
Custom Centre Traction Rod to Drawing
Non-standard traction rod compositions sourced or made to your drawing, sample, or technical specification.
- Custom
- To drawing
Bogie Steering & Lateral Rods
Steering rods and Watt's linkage rods that guide lateral and yaw movement of the bogie while keeping the linkage geometry stable.
-
No. 09
Steering Rods
Bogie Steering Rod Assembly, Elastic Bush
Steering rod composition with elastic end bushes for controlled bogie yaw and lateral guidance.
- Elastic bush
- Bogie
-
No. 10
Steering Rods
Steering Rod, Forged Eye End
Steering link with drop-forged eye ends and pressed-in bushes for replacement use.
- Forged end
- Replacement
-
No. 11
Steering Rods
Steering Rod, Tubular Body
Seamless tube body steering rod with welded end fittings, specified by centre distance.
- Seamless tube
- Welded
-
No. 12
Steering Rods
Lateral Rod Assembly
Transverse link assembly that supports lateral positioning between bogie and carbody.
- Lateral
- Passenger car
-
No. 13
Steering Rods
Axle Steering Link Assembly
Link assembly connecting axle-side components in steering and guidance arrangements.
- Axle link
- Locomotive
-
No. 14
Steering Rods
Custom Steering Rod to Drawing
Non-standard steering and lateral rod assemblies made or sourced to your drawing.
- Custom
- To drawing
-
No. 15
Watt's Linkage Rods
Watt's Linkage Rod Set
Matched Watt's linkage rod set for lateral location with controlled vertical movement.
- Watt's linkage
- Rod set
-
No. 16
Watt's Linkage Rods
Watt's Linkage Rod, Compact Type
Shorter-centre Watt's linkage rod for bogies with limited installation space.
- Compact
- Bogie
-
No. 17
Watt's Linkage Rods
Watt's Linkage Rod, Elastic Bush Type
Watt's linkage rod fitted with pre-compressed elastic bushes at both ends.
- Elastic bush
- Replacement
-
No. 18
Watt's Linkage Rods
Watt's Linkage Rod and Bracket Kit
Linkage rods supplied together with matching brackets and fasteners for maintenance overhauls.
- Kit
- Maintenance
-
No. 19
Watt's Linkage Rods
Custom Watt's Linkage Rod to Drawing
Non-standard Watt's linkage rods made or sourced to your drawing or sample.
- Custom
- To drawing
Gearbox Boom & Torque Support Rods
Gearbox boom compositions and torque support rods that react drive torque while allowing the gearbox and motor to move with the bogie.
-
No. 20
Gearbox Boom Compositions
Gearbox Boom Composition, Torque Support Rod
Boom composition that supports gearbox reaction torque, fitted with elastic bushes.
- Torque support
- Elastic bush
-
No. 21
Gearbox Boom Compositions
Gearbox Boom, Elastic Bush Type
Gearbox suspension boom with pre-compressed elastic bushes for impact and noise isolation.
- Elastic bush
- Drive unit
-
No. 22
Gearbox Boom Compositions
Gearbox Boom Composition, Adjustable
Length-adjustable gearbox boom for fitting and alignment on maintenance jobs.
- Adjustable
- Replacement
-
No. 23
Gearbox Boom Compositions
Motor Torque Reaction Rod Assembly
Reaction rod assembly linking the traction motor or gearbox to the bogie frame.
- Traction motor
- Locomotive
-
No. 24
Gearbox Boom Compositions
Gearbox Suspension Link Assembly
Suspension link assembly for gearbox hanging arrangements on passenger cars and locomotives.
- Suspension link
- Passenger car
-
No. 25
Gearbox Boom Compositions
Custom Gearbox Boom Composition to Drawing
Non-standard gearbox boom compositions sourced or made to your drawing or sample.
- Custom
- To drawing
Don't see your rod? We can find it or make it. Send a drawing, sample or centre distance and traction force.
Send EnquiryStructure & Materials
Engineering Details That Matter in Service
Typical construction options for traction rod assemblies. Final material grade, coating system and test requirements are confirmed against your drawing at quotation.
Seamless Welded Tube
Rod bodies made from seamless precision steel tube with welded end fittings, cut to the installation centre distance on your drawing.
Drop-Forged Rod Body and Ends
Drop-forged rods and eye ends for solid-bar designs, giving a continuous grain flow through the load path.
Anti-Corrosion Surface Treatment
Zinc-aluminium coating or electrophoretic paint options to protect rod bodies against corrosion in service.
Pre-Compressed Elastic Rubber Bushes
Bushes are pressed into the rod ends to allow multi-axis bogie movement while keeping longitudinal rigidity.
Specified Per Drawing
- Centre distance
- Traction force
- Bush type
- Coating system
Selection Manual
Chapter 10: Traction Rod & Link Assembly Selection Manual
Use the Chapter 10 manual to match center traction rods, steering rods, gearbox boom compositions and Watt's linkage rods to your bogie. Have your drawing and centre distance ready.
Request for Quotation
Tell Us the Force and the Centre Distance.
Enter the required traction force and the installation centre distance. Attach a drawing if you have one, and we will reply with availability, lead time and pricing.
- Required traction force (kN) and load direction
- Installation centre distance (mm) between the two bush centres
- Drawing, sample photo or existing part number
- Quantity, bush type and coating preference
Traction Rod RFQ
Fields marked with * are required.
