Railway Rubber Bump Stops & Secondary Rubber Mats
Limit Buffering and Elastomeric Isolation Pads for Bogies & Vehicle Frames
Overload Limiting & Secondary Vibration Isolation
Protect your bogie structures and suspension systems from extreme shock overloads with our durable railway rubber bump stops and elastomeric primary rubber mats. Designed to provide progressive cushioning during large displacements, our lateral and vertical bump stops act as safety limits that prevent harmful metal-to-metal contact during extreme sway or bounce.
Concurrently, our heavy-duty rubber spring mats and buffer pads are placed beneath metallic coil springs to mitigate high-frequency acoustic vibrations and distribute localized stresses evenly. Formulated from premium weather-resistant, oil-proof elastomers, our limit bumpers offer reliable performance under extreme climate and load conditions.
- Progressive cushioning at large displacements
- Prevents metal-to-metal contact
- Weather-resistant, oil-proof elastomers
- Sourced or made to your drawing or sample
Rubber Bumpers, Stop Blocks & Spring Mats
-

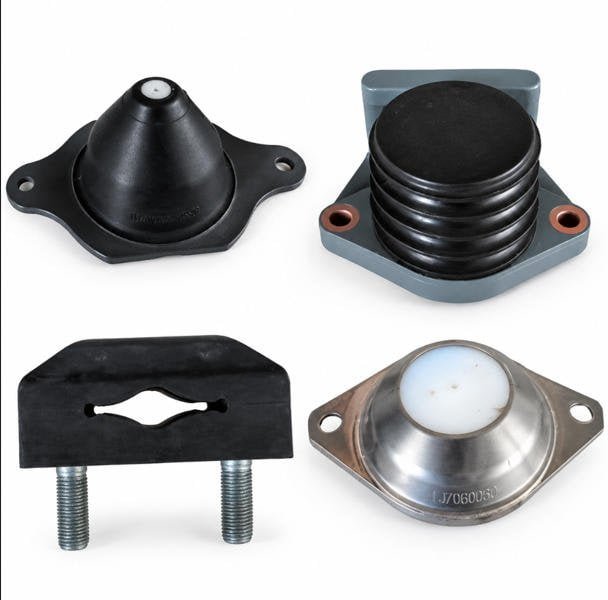

Lateral & Vertical Bump Stops
Conical or cylindrical rubber stops with metal mounting bases for end-of-travel limiting.
Lateral VerticalRequest Quote for Lateral and Vertical Bump Stops -
Primary Rubber Mats
Ring-type or positioned rubber spring mats placed beneath coil springs to isolate vibration.
Spring Mats PrimaryRequest Quote for Primary Rubber Mats -

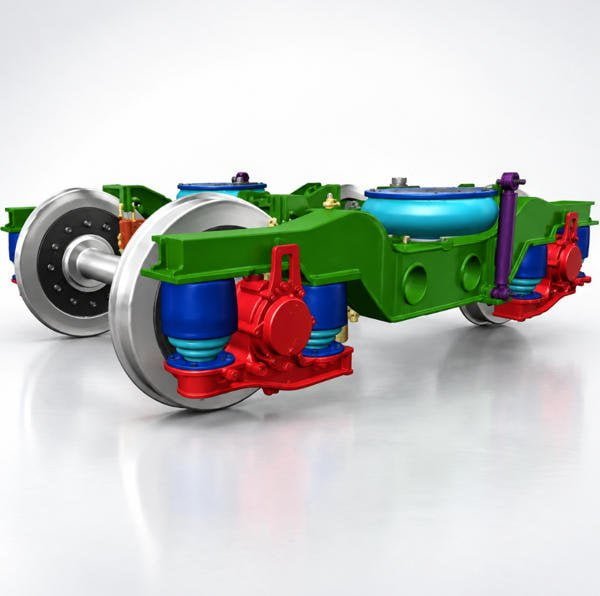

Secondary Rubber Mats & Buffers
Rectangular and layered rubber pads and buffer blocks for secondary suspension positions.
Secondary Buffer PadsRequest Quote for Secondary Rubber Mats and Buffers -

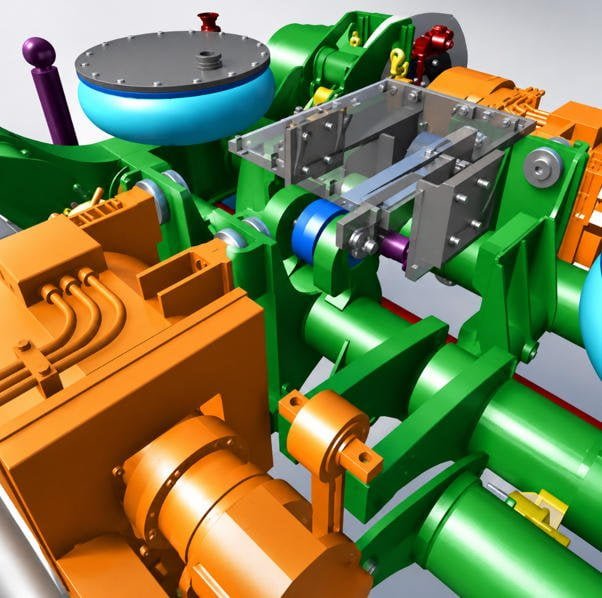

Progressive Rubber Buffer Blocks
Profiled rubber blocks whose stiffness rises with deflection for progressive damping.
Progressive DampingRequest Quote for Progressive Rubber Buffer Blocks
Where Each Rubber Component Does Its Job
Bogie Lateral & Vertical Rubber Bump Stops
Lateral bump stops limit sway between the bogie frame and carbody, while vertical bump stops limit bounce travel. Both act as safety limits that absorb shock before metal-to-metal contact can occur. Rubber stop blocks are available in conical and cylindrical forms, with or without metal mounting bases.
Keywords: Bogie Bump Stops · Rubber Stop Blocks
Primary & Secondary Suspension Rubber Mats
Primary rubber mats and spring mats sit beneath metallic coil springs to reduce high-frequency noise and spread localized stress evenly. Secondary rubber mats and buffer pads serve the carbody-side suspension positions as a further vibration isolation layer.
Keywords: Primary Rubber Mats · Spring Mats
Progressive Rubber Buffer Blocks & Protectors
Textured or wave-profile rubber buffer blocks provide rising stiffness as they compress, giving soft initial contact and firm end-of-travel protection for bogie and vehicle frame structures under heavy load.
Keywords: Rubber Buffer Pads · Railway Rubber Bumpers

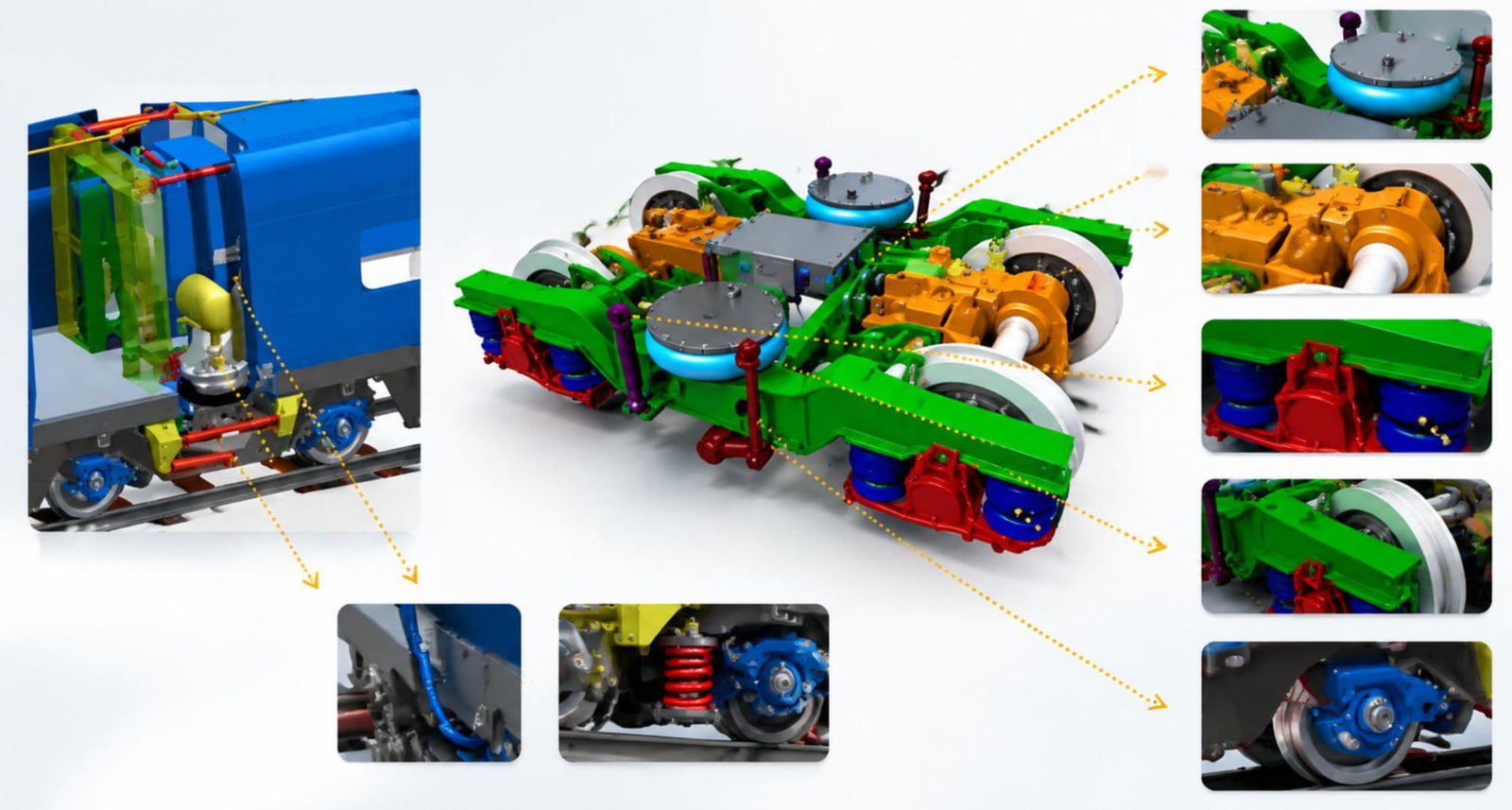

Where Bump Stops & Rubber Mats Sit on the Bogie
Primary mats sit under the axlebox coil springs, secondary mats and buffers at the bolster and carbody interface, and lateral/vertical bump stops at the travel limits of the bogie frame.
- Primary Suspension
- Rubber spring mats beneath coil springs at the axlebox.
- Secondary Suspension
- Rubber mats and buffer pads at the bolster and carbody interface.
- Travel Limits
- Lateral and vertical bump stops limiting extreme sway and bounce.
Common Sizes & Energy Absorption Reference
| Product Type | Typical Shape | Common Size Range (mm) | Hardness (Shore A) | Max Energy Absorption (indicative) |
|---|---|---|---|---|
| Lateral & Vertical Bump Stops | Conical / cylindrical, metal base | Ø 80-200 × H 40-150 | 55-75 | 0.5-3.0 kJ |
| Primary Rubber Mats | Ring / disc with locating holes | Ø 120-300 × T 8-30 | 60-80 | 0.1-0.6 kJ |
| Secondary Rubber Mats & Buffers | Rectangular / layered pad | L 100-400 × W 80-300 × T 10-60 | 55-75 | 0.3-1.5 kJ |
| Progressive Rubber Buffer Blocks | Wave / textured profile | Ø 90-220 × H 50-160 | 50-70 | 0.8-4.0 kJ |
Values shown are indicative reference ranges only. Actual dimensions, hardness, stiffness curve and energy absorption depend on the specific bogie design, rubber compound and load case. Send your drawing, sample or part number and we will confirm availability and specification before quoting.
Tell Us Which Bump Stop or Mat You Need.
Send your part number, drawing or sample description. We will reply with availability, lead time and pricing, usually within 24 hours.
- Replacement and maintenance parts for railway bogies
- Non-standard and custom parts: we can find it or make it
- Long-term supply for operators, workshops and distributors
