Locomotive Engine Accessories & Components (EMD / ALCO / D49 / MAN)
OEM-Grade Engine Components
for Heavy-Haul Locomotives
Precision-engineered cylinder heads, forged pistons, high-alloy cylinder liners, and valve train parts for EMD, ALCO, MAN, and D49 (Kolominsky Zavod) engine platforms.
Precision Metallurgical Engineering
for Locomotive Engine Overhauls
Locomotive diesel engines operate under extreme thermal stresses, high peak combustion pressures, and severe dynamic loads. We manufacture and supply high-precision engine components engineered to exact OEM specifications. Utilizing advanced materials including nodular cast iron (GGG70), vermicular graphite cast iron, forged steel, and high-tensile alloys, our components ensure maximum power output, low oil consumption, and long overhaul intervals.
EMD Series
567, 645 (645E/E3), 710 (710G3) Series
ALCO 251
ALCO 251 Series -- 6, 12, 16 Cylinder configurations
D49 / GOST
D49 (12DN26/16), D67 Series -- Kolominsky Zavod / Sinara Group
MAN & PC2-5
MAN & SEMT Pielstick PC2-5 medium-speed locomotive/marine engines
Product Sub-Categories
& Technical Specifications

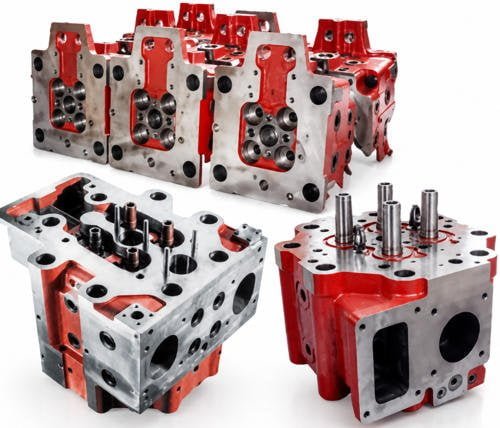

High-Grade Cast Iron Cylinder Heads
Manufactured with high-strength nodular cast iron, vermicular graphite cast iron, and alloy cast iron for superior thermal fatigue resistance and zero water-jacket leakage. Precision mold casting ensures consistent combustion chamber geometry across all production runs.
| Engine Model | Material Grade | Manufacturing Process | Quality Verification | Key Application |
|---|---|---|---|---|
| D49 Series | Nodular / Vermicular Cast Iron | Precision Mold Casting | Pressure & Hydro Test | Kolominsky Zavod / Sinara |
| EMD 645 / 710 | Alloy Cast Iron | Precision Machining | 100% NDT Inspection | Heavy-Haul Freight |
| PC2-5 / MAN | Grey / Nodular Iron | High-Temperature Resistant | Ultrasonic Testing | Marine & Rail Engine |

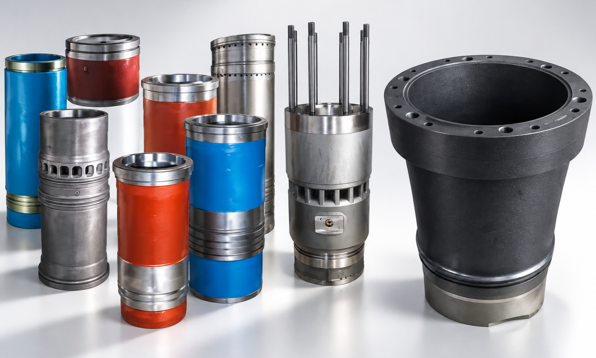

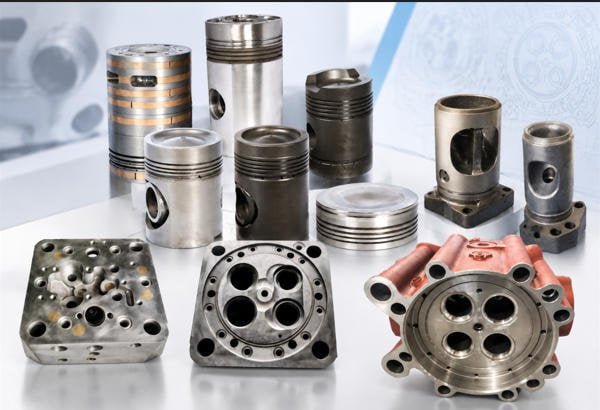

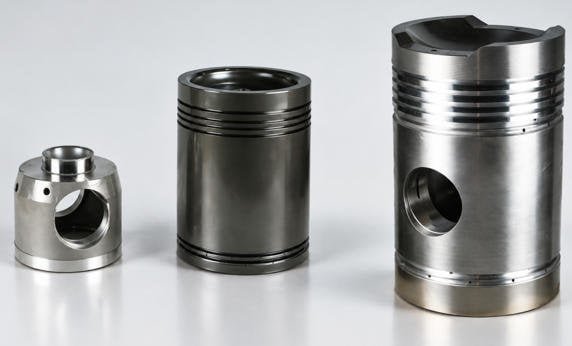

Pistons, Piston Carriers & Cylinder Liners (Bore φ160 - φ450mm)
Heavy-duty single-piece and steel-crown/aluminum-skirt split pistons, paired with laser-hardened boron alloy cylinder liners. High-frequency ring groove quenching prevents ring-land wear under high compression loads.
| Component | Bore / Size Range | Material Option | Surface Treatment | Special Feature |
|---|---|---|---|---|
| One-Part / Split Piston | φ160 mm - φ450 mm | Forged Steel Crown + Al/Iron Skirt | High-Freq Ring Groove Quench | GGG70 Nodular Level |
| Cylinder Liner | Standard & Oversize | Boron Alloy Cast Iron | Laser-Hardened / Honed | High Wear & Cavitation Res. |
| Piston Carrier | EMD 645 / 710 Spec | High-Tensile Ductile Iron | Precision Lathe Finish | Direct Drop-in Fit |

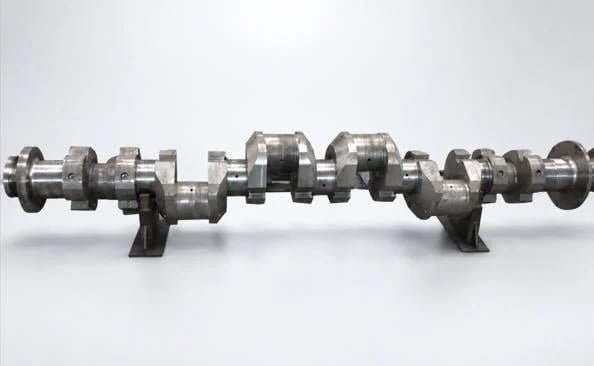

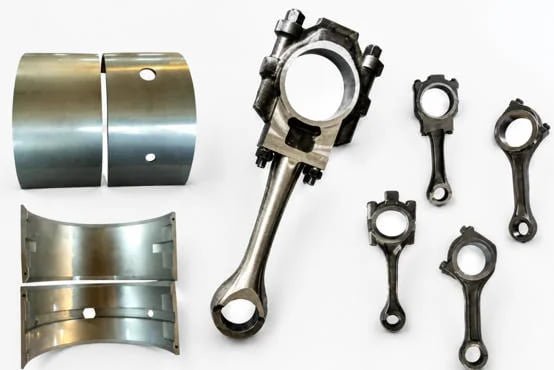

Forged Connecting Rods, Crankshafts & Tri-Metal Bearings
Hot die-forged blade/fork connecting rods and precision bearings tested with trilinear coordinates measuring equipment to ensure perfect dynamic balance. Shot-peened surfaces provide enhanced fatigue resistance under cyclic loading.
| Component | Applicable Engines | Material / Structure | Inspection Equipment | Key Feature |
|---|---|---|---|---|
| Connecting Rods | EMD (Blade & Fork) / D49 | Hot Die Forged 42CrMo4 | CMM & Roundness Tester | Shot Peened Fatigue Resistance |
| Engine Bearings | D67 / EMD / ALCO | Tri-Metal / Aluminum Alloy | Micro-Tolerance Gauge | High Anti-Friction & Load |
| Crankshafts / Blocks | Multi-Cylinder Engine | Forged Steel / High Cast | 100% Ultrasonic Test | Dynamic Balanced |

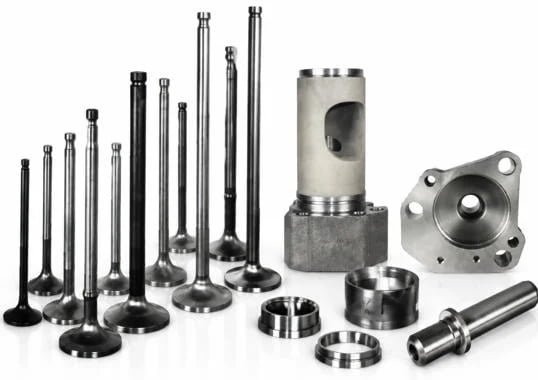

Fuel Injection Nozzles, Valves, Valve Seats & Bushings
Heat-resistant Nimonic alloy valves and high-pressure fuel injectors atomized and calibrated for minimum fuel consumption. Precision-ground valve seats ensure gas-tight sealing under sustained high-temperature combustion cycles.
Rigorous Metallurgical Controls
& Precision Inspection
Precision CNC Lathe Machining
Piston crowns, skirts, and rod bores are machined on multi-axis CNC lathes for stable dimensional tolerances across all production batches. Consistent bore geometry ensures proper ring seal and oil control.
High-Frequency Ring Groove Quenching
Piston ring grooves undergo controlled induction hardening to prevent ring-land wear under high compression. Surface hardness is verified by Rockwell testing on every production batch.
NDT & CMM Coordinate Verification
100% Ultrasonic Testing (UT) on rod blanks and CMM coordinate measurement for all critical fit dimensions. Trilinear coordinates measuring equipment ensures dynamic balance and geometric conformance.
Inspection Sequence: Raw Material Cert Check → Dimensional CMM Scan → UT Flaw Detection → Hardness Test → Pressure / Hydro Test → Final Visual & Dimensional Report
Industrial-Grade Export Packaging
for Heavy Parts
Anti-Rust Protection
Heavy oil-coating and VCI anti-rust film wrap for long-term oceanic transport. Protects precision-machined surfaces from corrosion during extended sea freight.

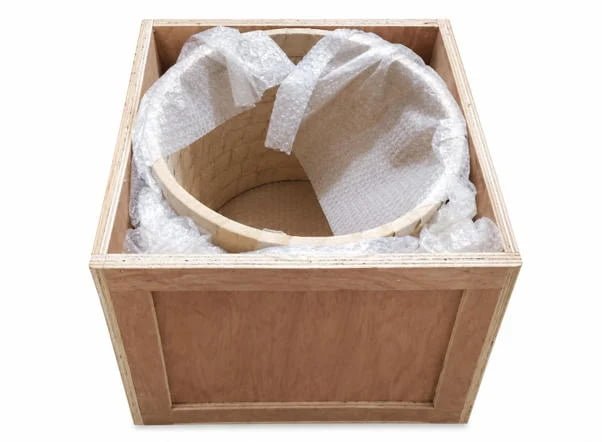

Reinforced Wooden Cases
Heavy castings and forged parts are secured in custom fumigated plywood crates to prevent shipping movement. ISPM-15 compliant fumigation certificates provided on request.
Download Technical Catalogs
& Cross-Reference Lists
EMD 645/710 Engine Component Interchangeability Guide
D49 / Russian Locomotive Engine Spare Parts List
Locomotive Diesel Engine Power Assembly Maintenance Manual
Catalogs are available on request. Submit an inquiry below and our team will send the relevant documentation within one business day.
Frequently Asked
Questions
Can you supply cylinder heads for Russian D49 (Kolominsky Zavod) engines?
Yes, we specialize in D49 cylinder heads and cylinder liners produced with high-grade nodular cast iron and vermicular graphite cast iron, fully compliant with Sinara Group and Russian rail fleet specifications. Our D49 heads undergo pressure and hydrostatic testing before dispatch.
Do you offer both single-piece cast pistons and split-type forged steel crown pistons?
Yes, we manufacture both single-piece cast aluminum/iron pistons and heavy-duty split-type pistons (forged steel crown with aluminum or ductile iron skirt) ranging from φ160mm to φ450mm bore sizes. Ring grooves are high-frequency quench hardened as standard.
Are your connecting rods inspected for roundness and straightness?
Every forged connecting rod -- including EMD blade and fork rods -- undergoes hot die forging, CNC machining, 100% ultrasonic flaw detection, and final verification using trilinear coordinates measuring equipment. Shot peening is applied to improve fatigue resistance under cyclic loading.
Can you supply non-standard or oversize cylinder liners?
Yes. We supply both standard and oversize cylinder liners in boron alloy cast iron with laser-hardened and honed bore surfaces. Please provide the engine model, current bore diameter, and any existing part numbers when submitting your inquiry so we can confirm the correct specification.
What is your typical lead time and minimum order quantity?
Lead times and minimum quantities vary by component and platform. Standard stock items for EMD and D49 platforms are typically available for prompt shipment. For custom or non-standard parts, lead times are confirmed at the time of quotation. Contact us with your part number and required quantity for a fast response.
Get a Fast Quote for
Engine Spare Parts
Send us your part number, engine model, or technical drawing. Our team responds with availability, lead time, and pricing -- usually within 24 hours.
