Bogie Roll Control Components
Bogie Anti-Roll Bar Systems & Vertical Links
Advanced Mechanical Roll Control Systems for Passenger Trains, Metros & Locomotives
Railway anti-roll bar system assemblies, ARB vertical links and support bearings -- sourced or made to your drawings, stiffness targets and installation envelope.
- High-Speed & Light Rail
- Metro & Passenger Coaches
- Locomotive & Heavy-Haul Freight
Category Overview
Roll Stiffness That Keeps the Carbody Stable.

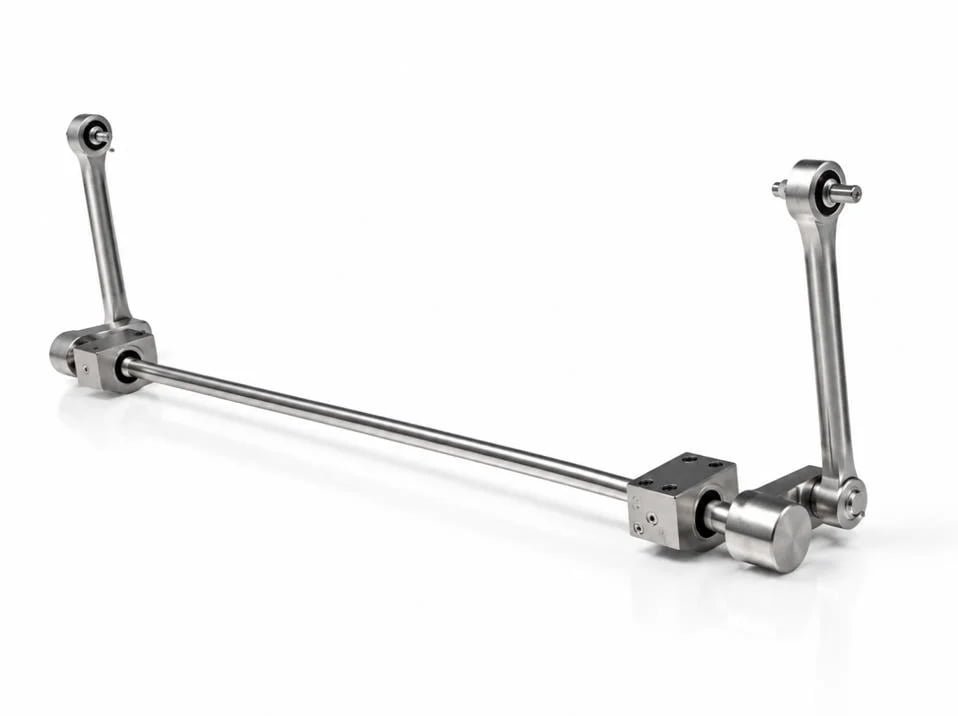

An anti-roll bar system (ARB) is an essential stability safeguard in modern railway bogies, designed to limit carbody roll movement during high-speed cornering and lateral displacement. Our integrated railway anti-roll bar assemblies comprise precision-forged torsion bars, operating arms, anti-roll bar links, and resilient support bearings engineered to withstand high torsional fatigue.
By delivering calculated roll stiffness without compromising vertical suspension compliance, our ARB solutions optimize running safety and passenger comfort across high-speed rail, light rail, and heavy-haul freight systems. Every torsion shaft and link assembly undergoes rigorous magnetic particle testing, ultrasonic inspection, and dynamic load testing.
Anti-Roll Bar Product Range
Complete Anti-Roll Bar Assemblies
Torsion bar, operating arms, links and support bearings supplied as a matched roll control set for passenger trains, metros and locomotives.
ARB Vertical Links & End Rods
Anti-roll bar links and end rods made to your length, joint form and load requirement, for new-build replacement and maintenance programmes.
Torsion Bar Rubber Bearings & Mounts
Resilient ARB support bearings and rubber mounts that carry the torsion shaft while allowing controlled rotation under service loads.
System Assembly Breakdown
Four Components. One Roll Control System.
Each element of the roll control system is specified together, so torsional stiffness, link geometry and bearing compliance work as one matched set.
-
Torsion Bar Shaft
The core spring element. Twists under differential wheel-set movement to generate roll stiffness. Precision-forged alloy steel with controlled yield strength.
-
Operating Arms
Lever arms that convert vertical relative motion into torsion in the shaft. Arm length and angle set the effective roll stiffness and rotation range.
-
Anti-Roll Bar Links / Vertical Rods
Connect the operating arms to the carbody or bolster. Supplied with the joint form and length your bogie layout requires.
-
Support Bearings / Rubber Mounts
Locate the torsion shaft on the frame and allow controlled rotation, while damping noise and accommodating small misalignments.
Key Features
Built for Torsional Fatigue, Verified Before Shipment.
Forged Alloy Steel
High-strength forged alloy steel torsion shafts and arms for dense grain flow and load capacity.
Controlled Yield Strength
Precise yield strength control keeps stiffness consistent from one set to the next.
Long Fatigue Life
Engineered to withstand high torsional fatigue over extended service intervals.
Tested Assemblies
Magnetic particle testing, ultrasonic inspection and dynamic load testing on every torsion shaft and link assembly.
Technical Spec Sheet
Configurable to Your Bogie Drawing.
Values are defined per project from your drawing or sample. Send your parameters and we will confirm the matching configuration.
| Parameter | Scope |
|---|---|
| Application | Passenger trains, metros, light rail, locomotives, heavy-haul freight |
| Torsion shaft | Precision-forged alloy steel, solid or hollow, per drawing |
| Roll stiffness | Customer-specified; matched via shaft, arm length and link geometry |
| Rotation angle | Customer-specified working and maximum torsion angle |
| Support bearings | Rubber-metal bearings and mounts, per drawing |
| Inspection | Magnetic particle testing, ultrasonic inspection, dynamic load testing |
| Supply basis | Replacement / aftermarket and non-standard parts made to drawing or sample |
| Link Type | End Joint Form | Link Length (centre to centre) | Adjustment |
|---|---|---|---|
| Rubber-bushed link | Rubber-metal bushing eye at both ends | Per drawing | Fixed |
| Spherical-joint link | Spherical bearing / rod end at both ends | Per drawing | Fixed or threaded |
| Adjustable end-rod link | Threaded end rods with lock nuts | Per drawing, with adjustment range | Length adjustable |
| Mixed-joint link | Different joint form at each end | Per drawing | On request |
Custom Parameters
Tell Us Your Roll Stiffness Target.
Share stiffness, rotation angle and installation space, or upload your drawing. We will respond with availability, lead time and pricing.
- Required roll stiffness and torsion angle
- Installation space and mounting interface
- Link length, joint form and bearing type
- Quantity and target delivery market
Request a Quote
Fields marked with * are required. We usually reply within 24 business hours.
