Railway Primary Suspension Components & Metal-Rubber Springs
Precision-Engineered Shock Absorption Solutions for Bogies & Rolling Stock

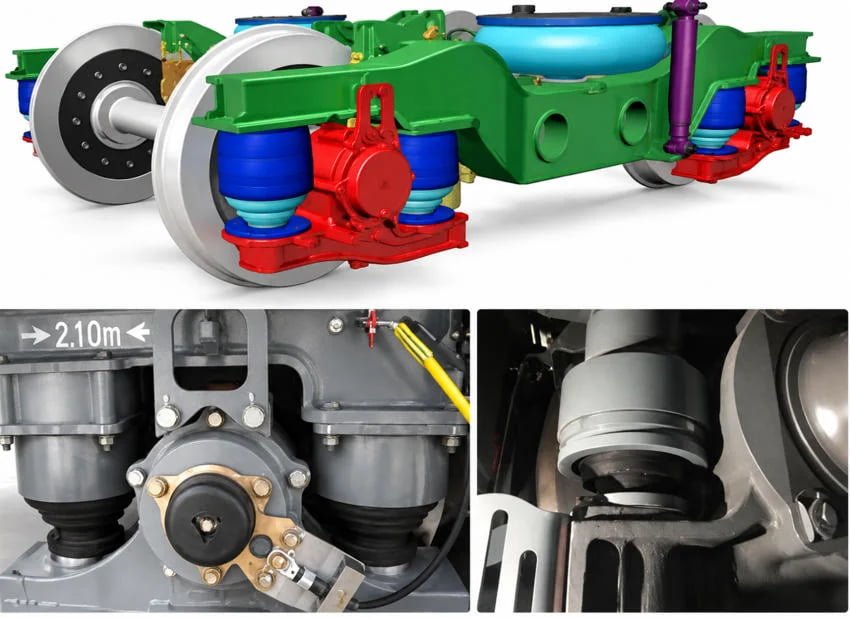

Bogie Primary Suspension: Absorbing Track Shock, Reducing Noise
Railway primary suspension is the vital link between the wheelset and the bogie frame. Well-specified railway primary suspension components directly influence train stability, track wear, ride comfort and running safety by absorbing shock from the rail, damping vibration and reducing structure-borne noise before it reaches the bogie and carbody.
Global Rail Spares (GRS) supplies and sources a comprehensive range of heavy-duty primary suspension products, including conical rubber springs, chevron springs (also known as layer springs or chevron metal springs), swing arm bushes and primary vertical bump stops. These metal-rubber springs and primary suspension bushes use rubber-to-metal bonded construction, with elastomer compounds selected for the load, temperature and dynamic duty of each application.
Whether you need replacement parts matched to original drawings or customized stiffness characteristics for passenger cars, locomotives or freight wagons, our team works from your drawings, samples or technical data. Reference standards such as EN 13597 and UIC specifications can be reviewed at enquiry stage, so your bogie primary suspension is engineered for long service life and minimal maintenance.
Typical replacement triggers include rubber cracking, permanent set, loss of ride height, abnormal noise and separation at the bonded interface. Photos and measurements help us confirm a suitable match quickly.
Primary Suspension Components for Bogies
Filter by product family or vehicle type. Every item can be quoted as a replacement part or developed to your drawings and stiffness targets.
Showing 4 of 4 product families
Conical Springs

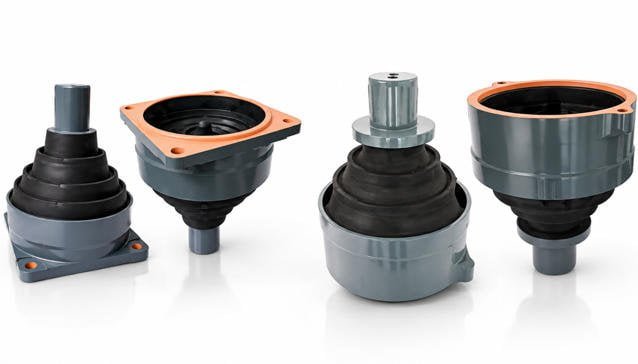

Conical Rubber Springs for Bogies
Layered rubber-to-metal conical springs that carry vertical load while allowing controlled lateral and longitudinal flexibility in bogie primary suspension.
- Metal-rubber bonded construction
- Stiffness tuned to vehicle data
- Replacement or custom design
Typical applications
- Passenger Cars
- Locomotives
- Freight Wagons
Chevron / Layer Springs

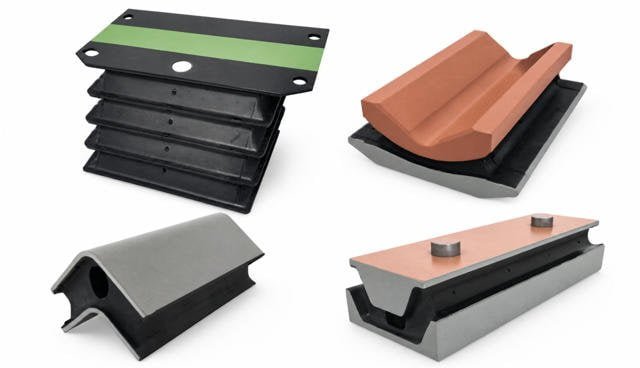

Chevron & Layer Springs for Rail Vehicles
Chevron metal springs built from alternating rubber and steel layers, combining vertical, lateral and longitudinal stiffness for axle guidance and load support.
- V-shaped layered construction
- Good shock and vibration damping
- Custom stiffness on request
Typical applications
- Passenger Cars
- Locomotives
Swing Arm Bushes

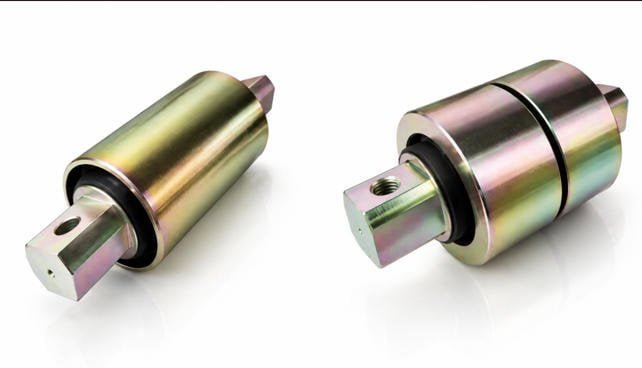

Swing Arm Bushes & Primary Rubber Springs
Rubber-metal primary suspension bushes for swing arm and axle guide connections that damp vibration, reduce noise and limit wear at the joint.
- Rubber-to-metal bonded design
- Noise and vibration reduction
- Matched to drawings or samples
Typical applications
- Passenger Cars
- Locomotives
- Freight Wagons
Vertical Bump Stops

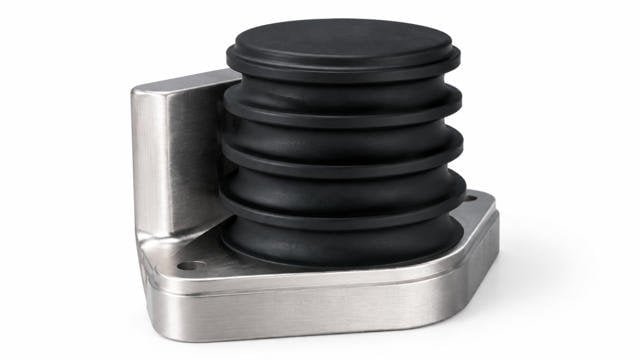

Primary Vertical Bump Stops
Rubber end-stops that limit vertical travel of the primary suspension, protecting the bogie frame and springs under peak and overload conditions.
- Progressive end-stop response
- Protects springs and frame
- Custom profiles available
Typical applications
- Passenger Cars
- Freight Wagons
Why Metal-Rubber Primary Suspension Performs
Key engineering points we discuss with buyers and engineers when specifying bogie primary suspension parts.
-
High Fatigue Durability
Bonded rubber-metal construction and compounds selected for repeated dynamic loading, aimed at long service intervals.
-
Shock & Noise Damping
Absorbs track impact and dampens vibration to protect the bogie frame and reduce noise transmitted to the carbody.
-
Customizable Stiffness
Vertical, lateral and longitudinal stiffness can be tuned through geometry, layers and rubber hardness to fit your vehicle data.
-
Fire-Safety Requirements
Project requirements such as EN 45545 can be reviewed at enquiry stage. Please state the hazard level and vehicle category.
-
Standards-Aware Specification
We work with drawings and references such as EN 13597 and UIC specifications, confirming achievable requirements per project.
-
Find It or Make It
Replacement parts matched from part numbers, drawings or samples, plus non-standard designs for long-term supply.
Spec Sheet & PDF Catalog
PDF Catalog 01 – Primary Suspension
Overview of conical springs, chevron springs, swing arm bushes and vertical bump stops, with the information we need to quote your application.
Request PDF Catalog| Product family | Function in the bogie | Please provide |
|---|---|---|
| Conical rubber springs | Vertical load support with controlled lateral and longitudinal flexibility | Drawing or part number, static load, target stiffness, interface dimensions |
| Chevron / layer springs | Combined vertical, lateral and longitudinal stiffness, shock damping | Drawing, load case, stiffness values, installation angle |
| Swing arm bushes | Articulated connection with vibration and noise damping | Bush dimensions, sleeve material, radial and axial stiffness targets |
| Vertical bump stops | Limits vertical travel and protects frame and springs | Free height, travel gap, end-stop load, mounting details |
Also helpful: vehicle type, operating temperature range, fire-safety requirements (for example EN 45545 hazard level), and any reference standard such as EN 13597 or UIC.
Primary Suspension: Fitment & Customization FAQ
How do I confirm that a conical spring or chevron spring fits my bogie?
Send us the original part number, a drawing, or the vehicle and bogie type together with key dimensions and photos. We compare the interface dimensions, load direction and stiffness requirements before confirming a suitable match.
Can you customize stiffness characteristics?
Yes. Vertical, lateral and longitudinal stiffness can be tuned by adjusting rubber hardness, geometry and layer construction. Please share the design loads, the target stiffness values, or the existing part you want to match.
Do you supply replacements for existing parts without drawings?
In many cases we can work from samples, photos and measurements. Tell us the vehicle type and operating conditions, and we will advise on the information needed to quote a replacement.
Which standards can the parts be specified to?
We can review project requirements referencing standards such as EN 13597 and UIC specifications, as well as fire-safety requirements such as EN 45545. Please state the standard, hazard level and any test requirements in your enquiry so we can confirm what is achievable for your project.
What is the difference between chevron springs and layer springs?
The terms are often used for the same family of layered metal-rubber springs. Chevron (V-shaped) construction gives a combination of vertical, lateral and longitudinal stiffness, which is why chevron metal springs are widely used in bogie primary suspension.
Which markets and vehicle types do you support?
We support railway operators, maintenance workshops and distributors for passenger cars, locomotives and freight wagons, with export supply to North America, Europe, Africa, Southeast Asia, South America, the Middle East and the CIS.
Request a Quote for Primary Suspension Components
Send your part number, drawing or vehicle details. We will confirm fitment options, lead time and pricing.
- Part number, drawing or sample photos
- Vehicle type, bogie model and quantity
- Stiffness targets and referenced standards
