Custom-Engineered Coupling Systems for Complex & Cross-Border Rail Operations -- High-performance Rotary Couplers, Central Folding Hybrid Couplers, MCA Axle Couplers, and Transition Locks designed for non-standard tracks, rotary tipple unloading, and multi-gauge railway networks.
Solving Complex Rail Interoperability
and Heavy-Duty Handling Challenges
Standard couplers often fall short when dealing with cross-border rail connections, continuous rotary car dumping, or tight-radius industrial tracks. Our Mixed & Special Standard Systems bridge these operational gaps. Engineered with advanced forging, heat treatment, and kinematic articulation technologies, our custom couplers ensure safe, reliable, and continuous train operations across diverse international railway standards and extreme track geometries.
Continuous Rotary Tipple Unloading
Coal, ore, and grain freight trains using rotary vs. fixed couplers without uncoupling wagons -- maximizing throughput at automated dumper stations.
Cross-Border Railway Transit
Wagons switching between AAR, UIC, GOST, and Willison coupling zones at international transshipment hubs and border crossing facilities.
Industrial & Mining Lines
Narrow gauge, sharp curves, and short-distance yard shunting operations in underground mines, plant yards, and industrial facilities.
System Coverage
Product Sub-Categories &
Technical Specifications

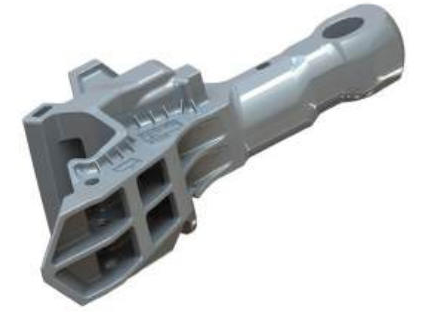

Heavy-Duty Fixed (FCA-3) & Rotary (FRCA-3) Coupler Systems
Engineered for heavy-haul bulk commodity trains. The FRCA-3 rotary coupler allows 360-degree rotation of wagons during automated tipple dumping without disconnecting the train line, while paired with the FCA-3 fixed coupler on adjacent ends.
| Coupler Type | Breaking Load | Rotation Angle | Main Mechanism | Standard Compliance | Primary Application |
|---|---|---|---|---|---|
| FCA-3 (Fixed) | ≥ 3.0 MN | Fixed (0°) | Cast/Forged Steel | AAR / GOST Modified | Heavy Haul Freight |
| FRCA-3 (Rotary) | ≥ 2.5 MN | 360° Continuous | Sealed Bearing Head | AAR / Custom Heavy | Rotary Tipple Coal |
Key Features
- Heavy-duty sealed rotary joint prevents coal/dust ingress.
- Eliminates manual uncoupling at rotary car dumpers, boosting unloading efficiency by over 300%.

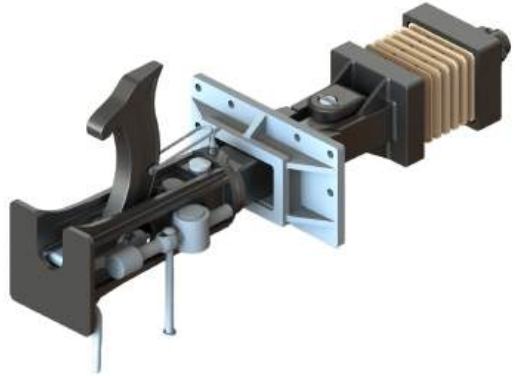

MCA Series Axle-Guided Couplers (MCA-DA / MCA-PH)
Compact, pin-connected axle couplers designed for narrow-gauge freight cars, light rail locomotives, and specialized industrial mining vehicles. The dual-pin and pin-and-housing designs provide high articulation angles for extreme curve negotiation.
| Model Type | Tensile Capacity | Vertical Articulation | Horizontal Angle | Connection Type | Typical Application |
|---|---|---|---|---|---|
| MCA-DA | Up to 600 kN | ±15° | Up to ±35° | Dual-Pin Axle Joint | Mining / Industrial |
| MCA-PH | Up to 850 kN | ±20° | Up to ±40° | Pin-and-Housing Block | Light Rail Freight |
Multi-Standard Hybrid & Folding Couplers
中央折叠式混合车钩 -- AAR/UIC, GOST/Willison, UIC/Willison
Features a dual-interface folding mechanism that allows instant transition between two different coupling standards (e.g., UIC screw coupling/buffer mode and AAR/GOST automatic coupler mode) on the same wagon.
| Hybrid Combo Type | Primary Standard | Secondary Standard | Transition Method | Operating Environment |
|---|---|---|---|---|
| AAR / UIC Hybrid | AAR Type E / F | UIC Screw & Buffer | Center-Folding Shank | Europe to Middle East / Asia Lines |
| GOST / Willison | CA-3 Automatic | Willison Profile | Dual-Head Swivel | CIS to European Border Transit |
| UIC / Willison | UIC Draw Hook | Willison Automatic | Manual Drop-In Pin | Special Cargo Transshipment |
Extended Articulation & Short-Neck Couplers
小曲线半径与短颈车钩
Tailored for tight-curve industrial tracks, plant yards, and short-distance freight haulers where standard couplers bind or derail.
Shortened Shank Design
Shortened shank length minimizes wagon-to-wagon gap, reducing slack action and improving ride quality in tight yard environments.
Extra-Wide Lateral Swing (±45°)
Extra-wide lateral swing angle (up to ±45°) preventing jackknifing on S-curves down to 40-meter radius in industrial and mining layouts.
Emergency Transition Adapters & Tight-Lock Couplers
过渡车钩与紧锁车钩
Portable and emergency transition couplers used to connect mismatched train sets during rescue operations, delivery transit, or mixed fleet haulage.
Emergency Transition Adapters
- AAR to UIC Transition Adapter
- CA-3 to AAR Transition Adapter
- Rapid-deploy portable configuration
Type H Tight-Lock Couplers
- Zero-backlash passenger train connections
- Smooth ride quality for high-speed sets
- Compatible with mixed fleet operations
Engineered-to-Order Solutions
& FEA Validation
Finite Element Analysis (FEA)
Dynamic stress distribution modeling under peak tensile/compressive loads to ensure optimum fatigue life and structural integrity across all operating conditions.
Custom Interface Adaptation
Built to match non-standard car underframes, draft gear pockets, and unique mounting interfaces. We work from your drawings, samples, or dimensional specifications.
Prototype Testing
Full-scale static tensile/yield verification up to 4,000 kN and dynamic articulation test rigs to validate performance before series production delivery.
Frequently Asked Questions
How does the FRCA-3 Rotary Coupler operate during car dumping?
The FRCA-3 features a heavy-duty internal rotary joint. While the wagon is rotated 360 degrees inside the tipple cage, the coupler shank rotates along its longitudinal axis without transmitting torsional force to the adjacent wagon, eliminating the need to uncouple. This allows continuous, automated unloading cycles with no manual intervention between wagon rotations.
Can you customize couplers for ultra-small curve radii in mining or factory yards?
Yes. We can customize shank lengths, centering device spring loads, and lateral articulation joint limits to allow smooth negotiation of curve radii down to 35-40 meters without binding. Our engineering team conducts kinematic simulation before finalizing the custom design to verify performance at the specified minimum radius.
What information is needed for a custom transition or hybrid coupler quote?
We typically require the following four items to prepare a meaningful engineering quotation:
- The two coupling standards involved (e.g., AAR to UIC, CA-3 to Willison).
- Maximum tensile and compressive load requirements (kN or MN).
- Underframe pocket dimensions and mounting interface constraints.
- Minimum track curve radius (meters) for the operating environment.
Discuss Your Custom
Coupling Requirement
with Our Engineers
Submit your technical requirements and our engineering team will respond with a tailored solution proposal, including FEA validation scope and lead time estimate.
- Coupling standards and interface types required
- Load capacity and minimum curve radius
- Envelope drawings or dimensional sketches (file upload supported)
- We typically respond within 24 business hours
