Ergonomic Rail Transit
& Vehicle Seating
Solutions
From locomotive driver cabs to high-speed passenger compartments -- railway-grade ergonomic seating engineered for safety, comfort, and long-term durability across 30+ export markets.
Industry Credentials & Manufacturing Strengths
Industry Standard Setter
Lead drafting unit for the Railway Industry Standard TB/T 3264-2011 -- Locomotive Driver Seat. We don't just meet the standard; we helped write it.
Global Certifications
Full compliance across quality, environmental, and safety domains:
Global Export Provenance
High-performance seating systems exported to over 30 countries, certified and approved by major international transit operators across 6 continents.
Locomotive & Rail Transit
Driver Cab Seats
Ergonomically engineered for railway locomotives, high-speed EMU trains, urban metro lines, and heavy-haul freight systems. Designed with multi-directional positioning, dynamic weight adaptation, and superior vibration damping.

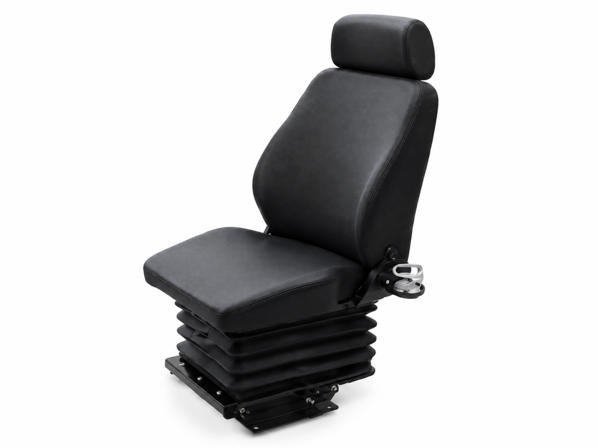

TZY1-D3(A) Driver Seat
Mounting Base
180×210×140 mm (4-Ø12)
Height-adjustable headrest, reclining backrest, seat cushion depth tuning, bi-directional sliding, 360° rotation lock, built-in cup holder.

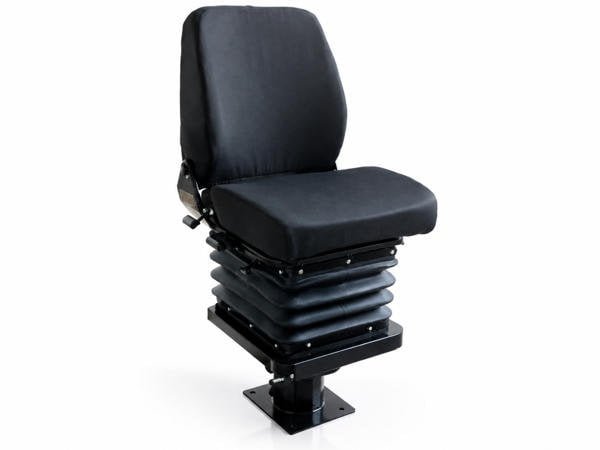

TZY1-Q4(G) Driver Seat
Dimensions
550×500×1160 mm
Mounting Base
190×209×140 mm (4-Ø14)
Backrest angle adjustment, extendable seat cushion depth, linear fore-aft sliding mechanism, free swivel with secure locking.

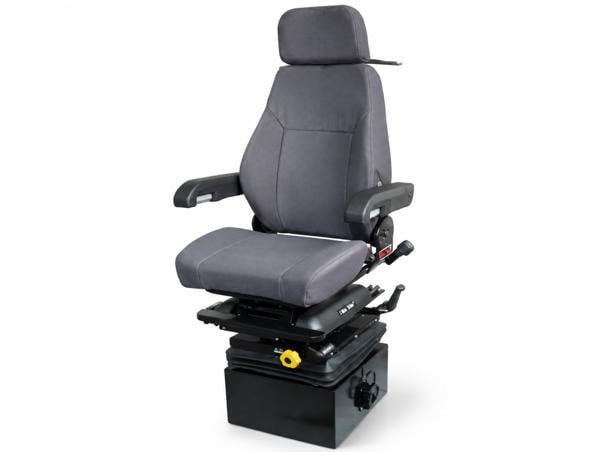

TZY1-Q5(C) Driver Seat
Dimensions
540×600×1520 mm
Mounting Base
253×304 mm (4-Ø12)
Floating Suspension System, self-adaptive weight regulation, stepless armrest angle tuning, dual-axis height control.

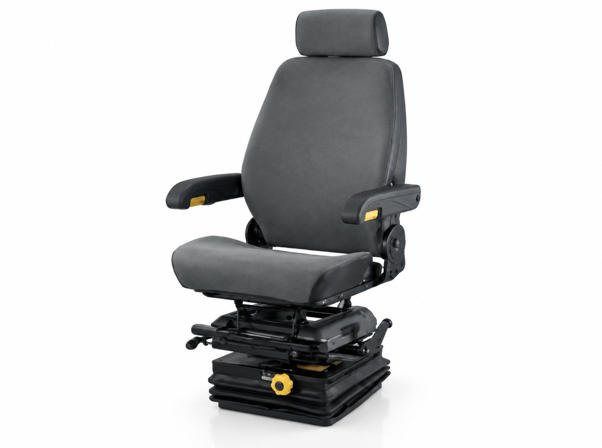

TZY1-D8 / D8-D Driver Seat
Dimensions (D8 / D8-D)
590×620×1070 mm / 540×610×1245 mm
Mounting Base
260×295 / 140×210×180 mm
Tailored for High-Speed EMU cabs; shock-absorbing weight regulation, continuous armrest tilt adjustment, dynamic backrest tracking, optional integrated toolbox storage.

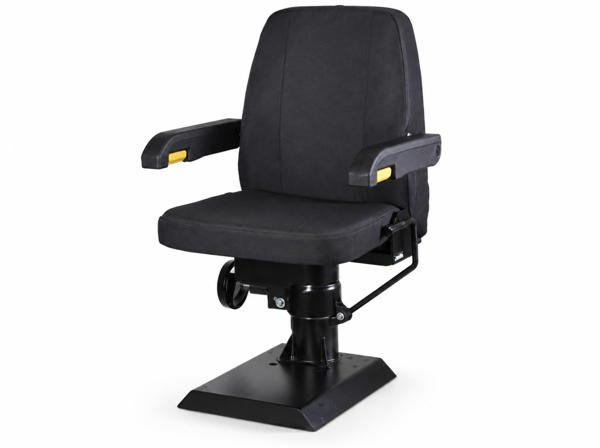

TZY1-D9 / D9(1) Metro Seat
Mounting Base (D9 / D9(1))
350×120 / 120×125×125 mm
Compact mounting footprint optimized for subway and urban light rail cabs; quick-adjust height control and seat pan slide.

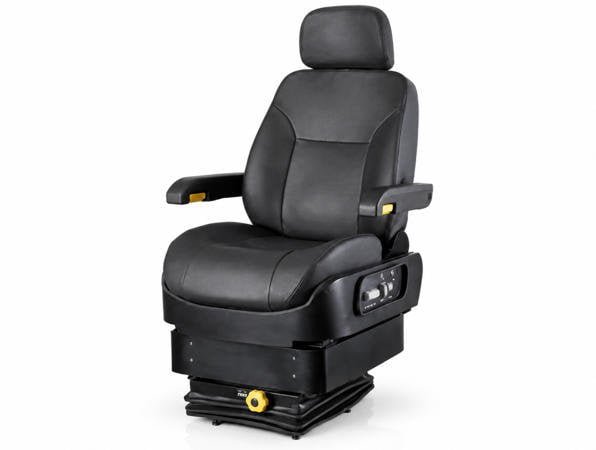

TZY1-D13 Motorized Driver Seat
Dimensions
540×630×1370 mm
Mounting Base
180×230 mm (12×40)
Powered fore-aft movement, motorized height adjustment, integrated heating & ventilation, multi-position memory functions.
| Model | Overall Dimensions | Mounting Base | Application | Key Feature |
|---|---|---|---|---|
| TZY1-D3(A) | -- | 180×210×140 (4-Ø12) | Locomotive | 360° rotation lock, cup holder |
| TZY1-Q4(G) | 550×500×1160 | 190×209×140 (4-Ø14) | Locomotive | Linear fore-aft slide, free swivel |
| TZY1-Q5(C) | 540×600×1520 | 253×304 (4-Ø12) | Freight / Heavy Haul | Floating suspension, weight adaptive |
| TZY1-D8 / D8-D | 590×620×1070 / 540×610×1245 | 260×295 / 140×210×180 | High-Speed EMU | Shock absorbing, optional toolbox |
| TZY1-D9 / D9(1) | -- | 350×120 / 120×125×125 | Metro / Light Rail | Compact footprint, quick adjust |
| TZY1-D13 | 540×630×1370 | 180×230 (12×40) | Premium / Motorized | Motorized, heating, ventilation, memory |
High-Speed Train &
Passenger Compartment Seats
Advanced passenger seating solutions optimized for high-speed EMU trainsets, intercity rail lines, and luxury express trains.

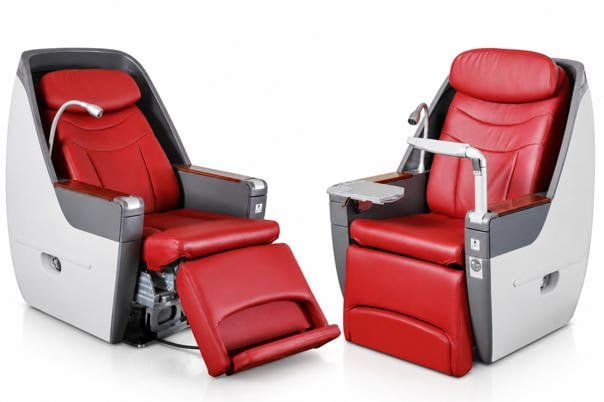

VIP Business Class Seat

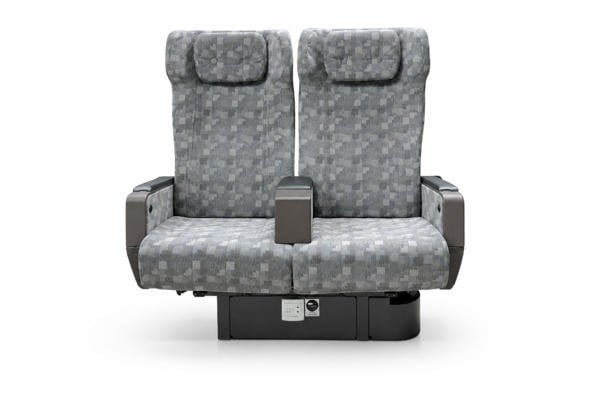

First Class Passenger Seat
Double Seat Platform -- 1130×675×1247 mm

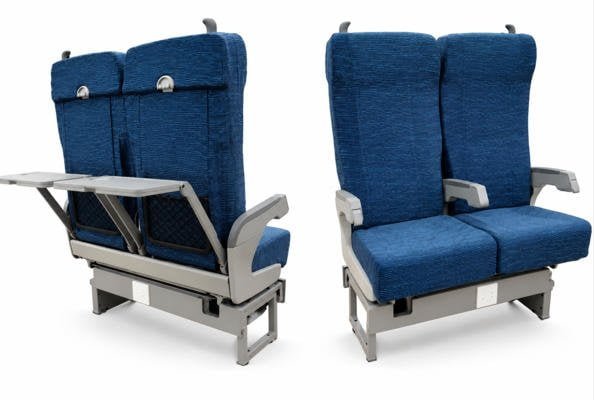

Second Class Passenger Seat
Double / Triple Seat Configurations
Specialized Transport &
Vehicle Crew Seats
Applying railway-grade anti-vibration technology and ergonomic standards to heavy equipment, marine vessels, and specialty transport systems.

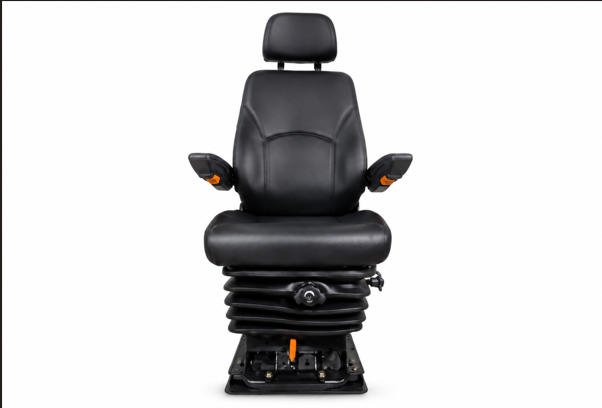

Heavy Machinery Operator Seats
Heavy-duty suspension seats engineered for excavators, mining trucks, and construction equipment to withstand continuous vibration and harsh operating environments.

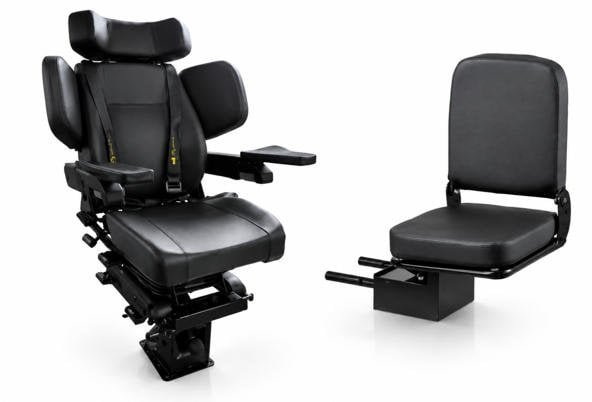

Marine & Yacht Operator Chairs
Corrosion-resistant finish with marine-grade shock mitigation for high-speed boats and commercial vessels. Engineered to perform in salt-air environments.

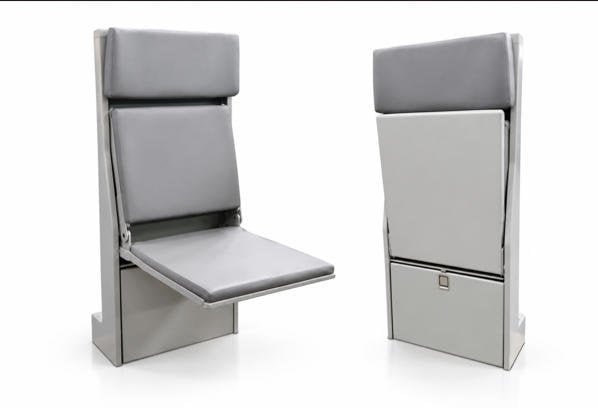

Aircraft & Crew Seats
Lightweight ergonomic structural design built to rigorous safety and comfort parameters for aviation crew positions and specialized transport applications.
Quality Standards &
Safety Testing
Structural & Fire Safety Compliance
Fire Safety Standards
Materials meet UIC 564-2, EN 45545-2 (HL2/HL3) hazard levels, and BS 6853 smoke/toxicity limits.
566
Mechanical Strength
Dynamic fatigue tested up to 100,000 continuous stress cycles under UIC 566 load ratings.
15085
Welding Standards
EN 15085-2 CL1 classification for primary load-bearing aluminum and steel components.
Ergonomic Engineering Features
Vibration Isolation
Pneumatic suspension models reduce low-frequency vibration exposure by up to 45%.
Lumbar Support
Dual-chamber pneumatic lumbar bladders for custom spinal curvature alignment and extended operator comfort.
Upholstery & Fabrics
Fire-retardant genuine leather, synthetic leather, or high-durability woven plush fabric -- all compliant with fire/smoke standards.
Key Compliance Standards
Custom Engineering &
OEM Options
Every railway operator has unique requirements. Our engineering team works directly with procurement and technical departments to deliver fully customized seating solutions.
Custom Base Interfaces
Adaptive mounting plates engineered to fit legacy locomotive cab interfaces or custom subfloor tracks -- no structural floor modifications required.
Power Systems
Compatible with all common train service supplies:
Integrated Controls
Optional joysticks, dead-man control switches, and microphone attachments built directly into the armrests to operator specification.
Upholstery & Logos
Custom corporate color palettes with laser-engraved or embroidered transit agency branding. Genuine leather, eco-leather, or woven fabric options.
Ready to Discuss Custom Requirements?
Our technical sales team can review your cab drawings, mounting specs, and functional requirements to propose the right solution.
Frequently Asked
Questions
Do your seats comply with international railway safety standards?
Do your seats comply with international railway safety standards?
Yes. Our seating systems comply with key international railway standards:
- EN 45545-2 -- Fire Protection on Railway Vehicles (HL2/HL3)
- UIC 566 -- Structural Requirements of Railway Vehicle Bodies
- TB/T 3264-2011 -- Locomotive Driver Seat Standard (we are the lead drafting unit)
Can driver seats be retrofitted into older locomotive models?
Can driver seats be retrofitted into older locomotive models?
Yes. We offer custom adapter mounting bases and adjustable height pedestals designed to fit legacy locomotive cab layouts without structural floor modifications. Please provide your cab subfloor drawings or bolt pattern dimensions when requesting a quote.
What cushion and fabric options are available for passenger seats?
What cushion and fabric options are available for passenger seats?
We offer high-resilience polyurethane foam cushioning wrapped in your choice of:
All materials comply with UIC and EN smoke/toxicity guidelines.
What is the typical production lead time for bulk orders?
What is the typical production lead time for bulk orders?
Standard Catalog Models
Ships within 3-4 weeks
Customized OEM Orders
Typically 6-8 weeks depending on engineering requirements
Request for Quotation
(RFQ) Guide
To receive a formal quotation, please send your project details to our technical sales engineering team. Providing the following specifications will help us give you an accurate price estimate.
What to Include in Your RFQ
Application Type
Locomotive cab, passenger car (VIP / 1st / 2nd Class), metro light rail, marine, or engineering machinery.
Product Model(s)
Model numbers (e.g., TZY1-D3(A), TZY1-D8, TZYI-SW1) or functional requirements if unsure.
Quantity Required
Prototype unit count vs. full project fleet batch quantity.
Mounting Requirements
Specific cab subfloor dimensions, bolt pattern drawings, or adapter plate needs.
Electrical & Control Specs
Voltage requirements (24V DC, 110V DC, 230V AC), integrated armrest controls, or heating/ventilation needs.
Material & Color Preferences
Upholstery choice (genuine leather, eco-leather, fabric) and custom branding requirements.
